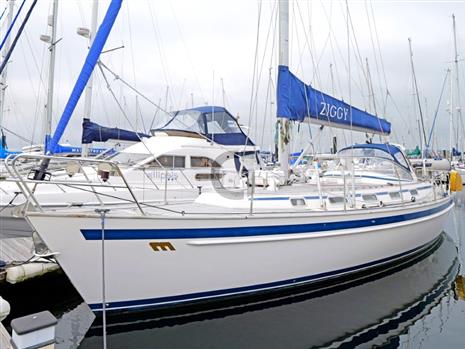

| CONSTRUCTION RCD Status: • The yacht conforms with the essential safety requirements of Directive 94/25EC (Recreational Craft Directive) and is categorised A – “Ocean” Hull Construction: • GRP moulded hull of sandwich construction. • Hull laminate of a combination of Isophthalic and Orthophthalic polyester laminate. • Hull cored with balsa providing insulation to hull construction. • Longitudinal and transverse bulkheads are laminated directly onto the hull. • Laminate grid of Internal ribs and stringers individually laminated to hull internally. • Galvanised steel mast support. • Hull finished externally with NGA gel coat for maximum protection against water penetration. • Moulded rubbing strake in hull with protective aluminium capping. • Topsides professionally polished annually • Blue sheer band and boot top stripes in original gelcoat finish. • Below the waterline finished with antifouling paint (dark blue), applied annually • Boat wintered ashore annually since new. Deck & Superstructure Construction: • GRP moulded deck and coach roof of sandwich construction. • Balsa core with polyester laminate. • Aluminium reinforcing in way of deck fittings. • Hull to deck joint secured with mechanical fastenings, over laminated. • Laid teak decking on side decks, coachroof and in cockpit. 12mm solid teak. • The “targa” arch is of moulded GRP construction with stainless steel studs built in securing it to the deck. • The deck has four scuppers draining on the waterline to prevent dirt markings on the hull. • Fixed windscreen forward of companionway with alloy frame and stainless steel grabrails, screens of safety glass. Keel & Rudder: • External lead ballast keel of the long fin shape. • Keel secured with stainless steel bolts. • GRP moulded, semi balanced rudder. • Partial depth skeg hung. MACHINERY Engine & gearbox: • Yanmar 4JH4E marine diesel engine • 57hp @3,200rpm • 4 Cylinder, turbocharged, direct injection, indirectly cooled. • Yanmar Kanzaki reversing marine gearbox. • Single lever morse control Maintenance & Performance: • Engine last serviced winter 2023/24 • Estimated running hours approximately 2000hrs • Cruising speed 7kts • Comprehensive set of cruising spares aboard for main engine and generator, including spare engine FW cooling pump. Propulsion & Steering: • Stainless steel propshaft. • Aquadrive thrust bearing. • Dripless, waterfed shaft seal. • Brunton Autoprop, 3 blade feathering prop • Rope cutter. • Jeffa steering system with pedestal in cockpit. • Stainless steel wheel with suede cover. Autopilot: • Raymaine ST6001+ control head mounted on pedestal • Linear drive direct to quadrant. ELECTRICAL SYSTEMS Voltage systems: • 12vDC onboard power system • 220vAC shorepower/generator supply Battery Banks: • Domestic – 3x 12vDC, lead acid • Engine – 1x 12vDC, 85Ah lead acid (2024) • Victron Energy Argofet battery isolator, charge splitting system Charging: • Mastervolt IVO smart charger • 220vAC – 12vDC, 35amp • 3 output Generator: • Fisher Panda FC4000 marine generator (2012) • 230VAC, 3.8kW / 4.5kV output • Remote control panel Alternator: • Single engine driven unit. • Adverc alternator controller Battery Monitor: • Adverc DCM Mk III battery monitor system Shore Power: • Single 16 amp connection. • Hardwired RCD protected system. • Extension lead to connect to shore power. • 3 pin UK sockets in saloon, galley and both cabins. Other Electrical: • 12vDC Auxiluary charging sockets PLUMBING & GAS SYSTEMS Fresh Water: • Pressurised hot and cold water system. • Single IsoTemp insulated tank with capacity 40ltrs heated via Eberspacher heating system or 220v immersion heater. • Monoblock mixer taps in galley and heads • Dedicated shower fittings in both heads compartments • Hot water provide by calorifier Bilge Pumps: • Manual bilge pump. • Electric bilge pump with manual and auto switching. Gas System: • Double; self-draining gas locker to starboard side beneath aft cockpit seat. • Locker will hold 2x 4.5kg bottles, currently fitted with 2x 907 Camping Gaz bottles TANKAGE Fuel: • Single fuel tank • Stainless steel tank construction • Approximate capacity 260ltrs Fresh Water: • Twin fresh water tanks • Stainless steel tank construction • Approximate tank capacities 260ltrs and 190ltrs • Approximate total capacity 450ltrs Black Water: • Dual holding tanks • Tanks discharging overboard or via deck suction • Approximate tank capacity 50ltrs each Tank Monitoring: • Analogue gauges for all tanks at nav station • Tank Watch level indicator for holding tanks, displays in both heads NAVIGATION & COMMUNICATION EQUIPMENT On Deck: • Depth – Raymarine ST60 • Log – Raymarine ST60 • Wind – Raymarine ST60 • Repeater – Raymarine ST60 Maxiview with remote control on pedestal • Compass – Plastimo • Plotter/Radar – Raymarine E80 Classic Below Decks: • Plotter/Radar – Raymarine E80 Classic MFD showing chart and radar information, master display with slave in cockpit Communications Equipment: • DSC VHF – Simrad RD68 with repeater speaker in cockpit • Navtex – ICS NAV6 navtex DOMESTIC EQUIPMENT Galley: • Galley Stove - SMEV gas cooker, 2 burner, grill and oven, gimbal mounted • Fridge - Isotherm top-loading fridge, water-cooled 12VDC compressor • Double stainless steel sink • Mixer tap • Pull-out chopping board. Heads: • RM69 electric marine toilet in forward heads • Raritan manual marine toilet in aft heads • 2x wash hand basins with mixer taps • 2x dedicated shower fittings Heating: • Eberspacher Hydronic diesel-fired wet system heating • Heat-exchanger blower units • Warm air outlets in forward and aft cabins, heads, shower and saloon. • Thermostatic controller in saloon • Manual fan speed switch in forward cabin • Heat exchanger unit allowing engine cooling water to heat system when in use Lighting: • Overhead lighting throughout accommodation • Dimmer switch for overhead lighting in saloon • Reading lights in way of bunks, LED • Reading lights in saloon over seating, LED • Chart light at nav station • Cockpit lighting within Targa arch Entertainment: • Alpine Radio/CD/MP head unit. • Speakers in saloon and cockpit ACCOMMODATION Summary of Accommodation: • Double master cabin forward with en-suite heads • Saloon providing two occasional single berths • Nav Station • Galley • Heads • Double aft cabin Accommodation Finish: • Joinery work below decks of mahogany veneered panels with solid mahonagy trims. • Wood work finished in a hand polished matte varnish. • Sole boards throughout of teak and koto veneered plywood finished in a hard varnish. • Fitted carpets throughout • Sage and orange pin stripe fabric upholstery throughout • Curtains with tie-backs for all portlights • Oceanair built in combi blinds and insect screens for all deck hatches • Sprung mattress in forward cabin • Memory foam mattress topper for forward cabin berth • Corrian galley worktop • Easy clean GRP moulded heads compartments with teak gratings Description of Accommodation from Forward: Forward Cabin: • Double V-berth located forward • Standing room aft of bunk • Selection of lockers and storage shelves running the length of the bunk, overhead, outboard to port and starboard • Two tier locker under aft section of bunk with louver door to access • Bench seat aft of bunk to starboard with two shelved lockers outboard • Step outboard aft of bunk to port with hinge up shelve • Hanging locker outboard to starboard • Thermostatic cabin heating controller. • En-suite heads to port aft end of cabin space Forward En-suite Heads: • Accessible from master cabin forward • Eelectric marine toilet outboard forward • Corner unit with inset washhand basin aft outboard • Shower stall area inboard with dedicated shower fitting • Vanity lockers outboard Main Saloon: • Quadruple drop leaf swiveling table offset to port. • U-shaped saloon seating wrapping around table to port • Bench settee to starboard. • Saloon settees convert to single berths, both fitted with lee cloth. • Seat backs removable to increase bunk width with large spaces which can be used for storage also. • Countertop outboard of settees with lockers forward and aft. Book shelf located centrally to port • Lockers beneath bench settee to starboard with doors to access without lifting cushions. Navigation Station: • Located aft of saloon to starboard • Forward facing chart table with dedicated navigators seating. • Chart storage within table • Bosuns drawers and locker beneath table forward. • Bin locker beneath navigators seat. • Ships switch panel, MFD repeater screen, VHF and Navtex Galley: • Wrap around J-shaped galley to port of companionway. • Deep fiddle running around edge of worktop. • Double stainless steel sink forward with infill section to cover when not in use. • Top loading below worktop fridge outboard. • Gimbal mounted cooker with worktop infill aft. • Selection of drawers and lockers beneath worktop. • Selection of storage lockers outboard of worktop. Heads: • Located to starboard of companionway. • Forward facing manual marine toilet at aft end • Hanging locker outboard of heads • Coutertop with inset sink along outboard side of compartment forward. • Vanity lockers outboard of countertop Aft Cabin: • Standing room at forward end of cabin • Two single berths extending aft with infill section to create double bunk • 3 deep lockers outboard inboard of bunk, at bunk level • Selection of lockers overhead, running along bunk outboard and across aft end • Double hanging locker outboard of standing room to port DECK EQUIPMENT Rig: • Deck stepped, double spreader masthead sloop rig. • Silver anodised alloy mast and spars by Selden with in-mast furling. • Standing rigging of 1x19 stainless steel with chromed bronze turnbuckles. • Removable inner forestay with dedicated chainplate forward, stowing aft to starboard side of mast. • Harken MkIII roller reefing system on forestay. • Fully battened slab-reefing mainsail • Selden rod kicker with gas spring. • One mast mounted halyard winch • Mainsheet track mounted on Targa arch. • All lines lead aft to cockpit. • Mast mounted radar reflector. • Harken genoa tracks and cars • Harken mainsheet track and car Winches: • Primary Winches – 1x Andersen 52 Electric, two-speed, self-tailing. 1x Andersen 52, manual, two-speed, self-tailing • Secondary Winches – 2x Andersen 28, two-speed, self-tailing • Mast Mounted Halyard Winches – Andersen 28, two-speed, self-tailing Sails: • Mainsail – White dacron, fully battened, slab reefing mainsail, 2-reefs • Genoa – White dacron, roller reefing 140%. Saturn Sails (2024) • Cruising Chute – Fitted with snuffer, 140sqm. Very lightly used. Saturn Sails • Storm Jib – As new, never used. • White sails regularly laundered and inspected by sail maker General: • Single stainless steel bow roller stemhead fitting with short, fixed stainless steel bowsprit • Stainless steel pulpit and pushpit rails • Stainless steel, capping rail mounted stanchions • Double tier stainless steel guardwires with gates port and starboard. • Gate across transom. • Alloy mooring cleat mounted on capping rail forward, midships and aft. • Alloy anit-chafe cappings fixed to capping rail in way of mooring cleats. • Bower anchor self-stowing in stemhead roller assembly • Below deck anchor locker with electric windlass mounted within. • Dorade ventilators x3 on coachroof, two forward vents fitted with stainless steel guards. • Teak grabrails running the length of the coachroof from the mast aft to the windscreen. • Alloy framed windscreen with sprayhood fitted forward of Targa arch to protect cockpit. • Cockpit tent extending to cover full cockpit. • Cockpit laid out with bench seating aft of pedestal and forward port and starboard. • Folding ‘windward’ seats outboard of wheel port and starboard. • Storage locker beneath aft cockpit seat. • Folding, double drop leaf, teak cockpit table mounted on pedestal. • Stainless steel folding swimming ladder Anchoring & Mooring: • Bower Anchor – 20kg Stainless steel Bruce anchor, 60m chain rode • Spare Anchor – 25kg CQR with chain and warp rode • Kedge Anchor – 10kg Bruce anchor • Bower anchor self-stowing in stem roller assembly • Anchor Windlass – Lofrans Kobra electric windlass, plug-in remote control in anchor locker • Selection of fenders • Selection of warps Canvas Work: • Mainsail Cover – Stackpack type cover with mast boot and lazy jacks • Sprayhood – Supplied by Malo Yachts in 2015 • Cockpit tent – Folding up to store in bag on targa arch Tender: • Inflatable Dinghy – Waveline 270, inflatable floor and hard transom (2019) • Outboard – Yamaha 2hp, 2-stroke Cradle: • Galvanised 6-leg cradle available if required. SAFETY EQUIPMENT: General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs. Navigation Lights: • Low level navigation lights. • Mast mounted steaming light. • Masthead tri-colour and anchor light. Life saving: • Seago – 4 Person, cannister raft. • Gas Alarm – disconnected currently • Webbing Jackstay |
