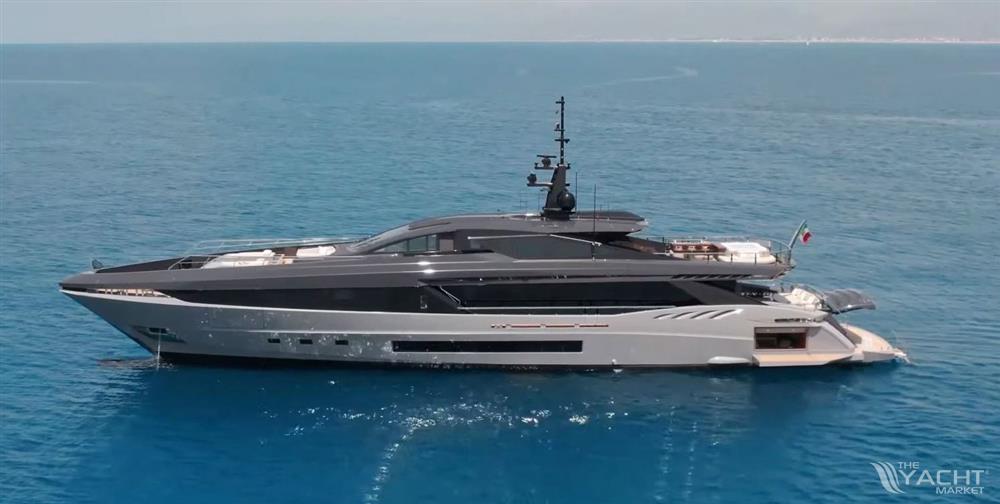

The 148' 6" MANGUSTA GRANSPORT 45 aluminium Superyacht is one of the newest additions to Mangusta’s GranSport line, combining innovation, luxury, space, performance and efficiency. Very much in Mangusta’s DNA, this fast displacement motor yacht boasts sleek lines, speed, long range and comfort. While she looks sporty, she can cross the Atlantic Ocean and explore uncluttered anchorages.

Exterior designer Alberto Mancini is spot on with his interpretation of Mangusta’s sleek, muscular and aerodynamic lines and offers a top speed of 26 knots, a comfortable cruise speed of 20 knots and during the night you can choose to navigate at 8 knots with the water-jet in complete silence. The performance is a combination of smart hull design by Pierluigi Ausonio, creating a semi-displacement aluminium hull that allows a range of 3,500 nautical miles at 12 knots, yet is safe and exhilarating with the throttle down. It’s a bulb-keel hull that cuts through the sea surface without planing. But maintaining the displacement mode even at high speed requires dynamic lift to control the longitudinal trim. Plenty of power is provided with triple 2600 Hp MTU Diesel engines.

Two of her engines drive standard prop shafts, the third, on the centreline, powers an innovative KaMeWa water-jet pod, which can be used as a booster, for fine manoeuvring or stealthy cruising.

Splitting the power across three engines makes for smaller propellers and thus lower draught; at 2.2 metres it allows this boat to creep into the shallows of the Bahamas, for example. But as skipper

The MANGUSTA GRANSPORT 45 interprets luxury as offering simple, uncluttered spaces aboard thanks to her impressive 444 GT volume. One of the first things that strikes you when you see the boat is her extensive teak-decked outdoors spaces.

To stern, a 75-square-metre beach club cantilevers off the transom and extends well inside the boat, down a couple of steps into an area that has the wood-lined feeling of her spa. There’s a transformer platform and two fold-down side terraces.

Up on the aft deck, the sense of space grows. Here another 75-square-metre expanse of teak is scattered with a designer sunbed. The effect is understated and elegant, but really what hits you is the room. The upper deck terrace, which features a jacuzzi, wet bar, grill and dining table. Combine that with the spa pool and infinity pool forward and you have an astonishingly large area for outside living. Each of these different spaces are fitted with Multiplex carbon bimini poles and, on this yacht, a matching grey awning can be extended over the pool. And from the garage hidden under the pool, it is possible to launch the five-metre Williams Dieseljet in three minutes without creating so much as a ripple above. The 45 does everything it can to encourage you outdoors.

Accommodating up to 11 guests in 5 staterooms, the full-beam main deck Owner’s cabin with automatic fold-down balcony is also a main feature. This Owner’s suite also harbours an open-plan bathroom that runs the full beam under the pool, and Mangusta has made the most of this by fitting skylights in the pool bottom. Four guest cabins are found on the lower deck with two double VIPs, a triple and a twin with bunkbeds.

Nowhere is the sporty character of this boat clearer than in the spaceship-like wheelhouse, with double-stitched black leather seating, backlit stripes and carbon fibre windscreen mullions.

This MANGUSTA GRANSPORT 45 Superyacht for sale is found in impeccable condition after her last warranty works at the Mangusta facility in Italy – Viewings are highly encouraged.

KEY FEATURES

• Fast displacement twin screw luxury Superyacht yacht with central waterjet booster
• Built in Aluminium
• Custom paint
• Zero speed stabilizers
• Up to 11 Guests in 5 lavish staterooms
• Automatic opening balcony in Owner’s main deck stateroom
• Forward deck pool + sundeck Jacuzzi
• Lateral launching starboard tender garage
• Stern beach club with opening balconies, relaxation area, gym and sauna
• Built, compliant and ready for charter
• Mint condition

MAIN CHARACTERISTICS

• Builder: Overmarine Mangusta Group S.p.A. (Italy)
• Model: Mangusta GranSport 45
• Hull Number: 02
• Naval Architecture: Overmarine Group
• Hull Design: Pierluigi Ausonio Naval Architecture
• Exterior Designer: Alberto Mancini Yacht Design
• Interior Designer: Overmarine Group
• Type: Motor Yacht / Superyacht / Sport Yacht / Performance Yacht / Flybridge Yacht
• Hull Type: Fast displacement / Planing
• Hull Material: Aluminium 5083
• Superstructure Material: Aluminium 5083
• Decks: Teak
• Year Built: 2021
• Length Overall: 45.30 m (148’ 6’’)
• Waterline Length: 38.40 m (126’)
• Beam: 8.60 m (28’ 2’’)
• Draft: 2.20 m (7’ 2’’)
• Displacement (half load): 275,000 kgs (606,265 lbs)
• Gross Tonnage: 444 GT
• Classification: ABS ✠ A1, (E), Yachting Service, (✠) AMS. Vessel built according to MCA LY3 compliance for Commercial Yacht Service - Unrestricted Navigation
• Flag of Registry: British Virgin Islands
• Location: Tuscany, Italy

PROPULSION

• Type / Fuel: Triple Diesels
• Main Engines: 3 x 2600 Hp (1939 kW) MTU 16V 2000 M96L @ 2450 RPM
• Engine Hours: Port 1560 h / Central 1508 h / Starboard 1560 h (November 2023)
• Maximum Speed (half load): 26 Knots
• Cruising Speed (half load): 20 Knots
• Economical Speed: 12 Knots
• Range @ 12 Knots: 3500 NM
• Drives:

  • 2 x Water lubricated propeller shafts with 5-blades high skew propellers, diam. 1.4m
  • Shafts with fixed pitch propellers
  • 1 x KaMeWa S63 4 waterjet central booster

• Gearboxes:

  • 2 x Free standing Gearboxes ZF 5350
  • 1 x Flange mounted reduction gears ZF model 5050

• Steering System: Hydraulic steering system

TANKAGE

• Fuel Capacity: 54,000 l (14,260 US Gals)
• Fresh Water Capacity: 8,000 l (2,113 US Gals)
• Grey & Black Water Tanks: 3,500 l (925 US Gals)

ACCOMMODATION

• 11 Guests in 5 staterooms
• Guest Cabin Configuration:

  • Full beam Owner’s suite on main deck forward, with double King-size bed facing forward, vanity/desk to port, 1 armchair, coffee table and automatic opening balcony to starboard, en-suite bathroom including His & Hers lavabos, shower room and hammam, walk-in wardrobe and Owner’s office
  • 2 x VIP staterooms on lower deck with double Queen-size beds, closets and en-suite shower rooms
  • 1 x Triple guest stateroom on lower deck each with 3 single beds, closet, and en-suite shower room
  • 1 x Twin guest stateroom on lower deck with bunkbeds, closet and shared en-suite shower room

    • Please ask us for possible conversion layouts

• Main deck with main saloon including 2 lounges, 1 armchair and coffee table, day head in corridor, pantry and fully equipped galley
• Skylounge on upper deck with formal dining area with table for 12, day head and pantry
• Wheelhouse on upper deck forward with full navigation and communication instrumentation, chart area
• Crew Accommodation:

  • 7 Crew in 4 cabins
  • Captain’s cabin on main deck, with single bed, chair, desk and en-suite shower room
  • Crew quarters forward on lower deck with 3 bunk-bedded crew cabins, all en-suite

• Crew mess with dinette
• Laundry area

MAIN EQUIPMENT

• Stabilizers: CMC MARINE zero speed and underway electric fin stabilizers
• Bow Thruster: Electric bow thruster 75kW 400V / 3-phase / 50Hz
• Generators: 2 x 80 kW KOHLER 400V AC soundproofed / 3-phase / 50Hz
• Generator Hours: Port 4240 h / Starboard 4230 h (November 2023)
• Fuel System: Main engines and generators drawing “purified” fuel from day tanks. Fuel Purifying System NFV KFWA 2 supplied by MTU
• Fresh Water System:

  • Water Pressure System: 2 x Electric pumps GIANNESCHI P&B / ACB332
  • Hot Water Circulation System: 2 x Electric pumps GIANNESCHI Z30 230V / 50Hz
  • Hot Water Expansion Tanks: 2 x GIANNESCHI 20 l
  • 2 x Steel boilers GIANNESCHI 150 l each / heating element 1.5+1.5kW
  • Watermakers: 2 x Reverse osmosis watermakers IDROMAR MC 3J Duplex, 360 l/h
  • Fresh water sterilization system IDROMAR
  • 1 x Water softener Idrofast IDROMAR
  • 1 x Silver Ion/Chlorine dosing station IDROMAR
  • 1 x Active carbon filter
  • 1 x UV sterilizer
  • 1 x Mesh filter 10 micron

• Black/Grey Water System:

  • PLANUS Prolift grey water “interface collecting tanks” every 2/3 bathrooms with wasting pump 230V AC
  • 1 x GIANNESCHI MVI60 400V AC / 3-phase / 50Hz discharge pump
  • 1 x DVZ FAT TRAP 1200 Mini 400V AC / 3-phase / 50Hz grease trap
  • SELMAR Blue Sea 7000 Plus sewage treatment plant

• Bilge / Firefighting System:

  • 2 x GIANNESCHI pumps P&B ACB 531 A 400V AC / 3-phase / 50Hz
  • 1 x Emergency pump (Diesel firefighting pump) outside engine room
  • Electric remote operated valves
  • Bilge level alarms
  • Vacuum and pressure gauges
  • Bilge water separator fitted in the engine room, to comply with Flagstate authority regulations
  • Aerosol System in accordance with the requirements of the Classification Society
  • 1 x GIANNESCHI FQ25 230V / 50Hz clean oil pump
  • 1 x GIANNESCHI FQ25 230V / 50Hz dirty oil pump

• Compressed Air System:

  • Full reversible air conditioning system throughout the yacht
  • 1 x KAESER SX4 400V AC / 3-phase / 50Hz compressor
  • 1 x 92 l (Main System) air tank
  • 1 x 24 l (Emergency) air tank
  • KAHLENBERG T2 air horn

NAVIGATION & COMMUNICATION EQUIPMENT

• 3 x HD 24T22 MMD screens
• 2 x HD 19T22 MMD screens
• 1 x MAXSEA navigation PC ECS chart system
• 1 x GP170 FURUNO DGPS wheelmark approved
• 1 x GP33 FURUNO DGPS wheelmark approved
• 1 x SIMRAD CG80 gyrocompass wheelmark approved - IMO
• 1 x HR80 repeater Gyro AR80
• 1 x PG500 heading sensor Fluxgate backup
• 1 x FURUNO radar ARPA #1 X Band Far 2218 wheelmark approved - IMO
• 1 x FURUNO radar antenna ASS. XN20AF 6.5ft
• 1 x FURUNO radar ARPA #2 X Band far 2218 wheelmark approved - IMO
• 1 x FURUNO radar antenna ASS. XN12AF 4.5ft
• 1 x FURUNO navigation echosounder wheelmark approved
• 1 x FURUNO transducer 50B 6B Plastic
• 1 x FURUNO doppler speedlog system DS80 wheelmark approved
• 1 x FURUNO transducer with 20m cable DS 820 20
• 1 x Wind transducer FI 5001
• 1 x AP70 autopilot
• 1 x AC80A autopilot processor
• 1 x QS80 non-follow-up remote that integrates with the AP70
• 1 x FURUNO AIS transponder CLASS A FA 170
• 2 x FURUNO VHF DSC Class A IMO FM8900 S
• 1 x FURUNO SSB HF/MF GMDSS Class A wheelmark approved - IMO
• 1 x FURUNO Navtex NX700
• 1 x FURUNO FELCOM18 Inmarsat C MES 1SET
• 1 x Main panel & processor unit BR 510/520 E 10
• 1 x PHONOTEC intercom system CIS 3100
• 1 x E NAV ISMART
• Wheelhouse:

  • 2 x FURUNO FI70 displays data repeaters

• Wing Stations:

  • 2 x FURUNO FI70 displays data repeaters
  • 1 x SIMRAD VHF/AIS RS90
  • 2 x SIMRAD HS90 remote handsets

• Crew Mess / Dinette:

  • 1 x FURUNO FI70 display data repeater
  • 1 x FURUNO RB8900 full function remote handset with display
  • 1 x Alarm panel BR 540
  • 1 x 9001 Indoor unit, wall mounted

• Captain’s Cabin:

  • 1 x Alarm panel BR 540
  • 1 x FURUNO FI70 display date repeater

• Garage:

  • 1 x FURUNO RB8900W full function remote handset with display
  • 1 x 9052 sub station

• Engine Room:

  • 1 x 9003 sub station for headset

CCTV EQUIPMENT

• 8 x AXIS cameras PTZ P5512E (2 x aft deck, 4 x engine room, 1 x arch rear view, 1 x garage)
• 1 x AXIS Minidome PTZ (1 x beach area)
• 1 x CCTV server videorecorder network NXVISION R16 S1 (IP CCTV server, 8 IP cameras, Web access, 1Tb RAID1 disk space)
• 1 x Monitor 15" HATTELAND HD 15T22 MMD in crew mess
• 1 x Control kit for CCTV
• 1 x Camera broadcast module
• 2 x Control stations (1 x crew mess, 1 x bridge)

NETWORKING

• 2 x CISCO SG 350 28P, 24 ports 10/100/1000 MBPS
• 1 x CISCO SG 350 52P, 24 ports 10/100/1000 MBPS
• 10 x Wi-Fi access points RUCKUS R 610
• 1 x PEPLINK PEPWAVE BR 1 MK2 LTEA 4G access router
• 1 x Service selector NXGATE 3800
• 1 x Harbour antenna 2.4 GHZ UBIQUITI BM2HP

ENTERTAINMENT EQUIPMENT

• SAT Antennas:

  • 1 x KVH TV8
  • 1 x KNS Z10 MK4

• Upper Deck Saloon:

  • 1 x TV 65” SAMSUNG RU7400 UHD 4K HDR
  • 1 x JM LAB CUBE EVO
  • 5 x JM LAB IW 1002 speakers
  • 1 x A/V receiver DENON AVR X 4500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 64gb Silver

• Main Deck Saloon:

  • 2 x TVs 65” SAMSUNG RU7400 UHD 4K HDR (mirroring)
  • 4 x JM LAB IW 1002 speakers
  • 1 x JM LAB CUBE EVO
  • 1 x A/V receiver DENON AVR X 4500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 64gb Silver

• Owner’s Suite:

  • 1 x TV 50” SAMSUNG RU7400 UHD 4K HDR
  • 1 x JM LAB CUBE EVO
  • 5 x JM LAB IW 1002 speakers
  • 1 x A/V receiver DENON AVR X 4500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• Owner’s Bathroom:

  • 3 x SONANCE VP66R SST/SUR (port bath, starboard bath, hammam)
  • 3 x Volume control plates

• Beach Club:

  • 1 x HARMAN CROWN DCi 4|300 amplifier
  • 4 x JAMES FXCQ820R round waterproof loudspeakers
  • 1 x JAMES M1000 MONO sub amplifier
  • 1 x JAMES 800PTM 8" Marine PowerPipe subwoofer
  • 1 x SEALUX HD audio Client
  • 1 x YAMAHA Airplay Music Cast WXAD 10
  • 1 x APPLE iPad Mini 5 64gb Silver

• Gym Area:

  • 2 x FOCAL 100 IW6 speakers
  • 1 x A/V receiver DENON AVR X 3500H
  • 1 x SEALUX HD audio Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• Port Guest Cabin:

  • 1 x TV 32'' NU5370 Full HD Smart TV
  • 2 x FOCAL 100 IW6 speakers
  • 1 A/V receiver DENON AVR X 3500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• VIP Port Cabin:

  • 1 x TV 43'' UHD 4K RU7400
  • 2 x FOCAL 100 IW6 speakers
  • 1 x A/V receiver DENON AVR X 3500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• VIP Starboard Cabin:

  • 1 x TV 43'' UHD 4K RU7400
  • 2 x FOCAL 100 IW6 speakers
  • 1 x A/V receiver DENON AVR X 3500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• Crew Mess:

  • 1 x TV 43'' UHD 4K RU7400
  • 2 x FOCAL 100 IW6 speakers
  • 1 x A/V receiver DENON AVR X 3500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• Captain’s Cabin:

  • 1 x TV 32'' NU5370 Full HD Smart TV
  • 1 x A/V receiver DENON AVR X 3500H
  • 2 x FOCAL 100 IW6 speakers
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• Crew Cabins (Port / Starboard / Fore):

  • 1 x BEATS Pill

• Technical Space:

  • 2 x ECLER MIMO 8X8 Audio Matrix

• Fore Deck:

  • 1 x HARMAN CROWN DCi 4|300 amplifier
  • 6 x JAMES FXCQ820R round waterproof loudspeakers
  • 1 x JAMES M1000 Mono Sub amplifier
  • 1 x JAMES 800PTM 8" Marine PowerPipe subwoofer
  • 1 x SEALUX HD AUDIO Client
  • 1 x YAMAHA AIRPLAY Music Cast WXAD 10
  • 1 x APPLE iPad Mini 5 64gb Silver

• Upper Deck Aft:

  • 2 x TVs 55” UHD 4K RU7400 (mirroring)
  • 1 x HARMAN CROWN DCi 4|300 amplifier
  • 6 x JAMES FXCQ820R round waterproof loudspeakers
  • 1 x JAMES M1000 Mono Sub amplifier
  • 1 x JAMES 800PTM 8" Marine PowerPipe subwoofer
  • 1 x A/V receiver DENON AVR X 3500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

• Main Deck Aft:

  • 1 x TV 50” SAMSUNG RU7400 UHD 4K HDR
  • 1 x HARMAN CROWN DCi 4|300 amplifier
  • 6 x JAMES FXCQ820R round waterproof loudspeakers
  • 1 x JAMES M1000 Mono Sub amplifier
  • 1 x JAMES 800PTM 8" Marine PowerPipe subwoofer
  • 1 x A/V receiver DENON AVR X 3500H
  • 1 x SEALUX HD/3D A/V Client
  • 1 x APPLE iPad Mini 5 64gb Silver

HOUSEHOLD APPLIANCES

• Upper Deck:

  • 4 x Wine coolers
  • 1 x Fridge
  • 1 x Icemaker

• Pantry:

  • Icemakers

• Laundry Room:

  • 2 x MIELE Professional washing machines
  • 2 x MIELE Professional drying machines

• Galley:

  • 1 x MIELE Professional oven 90 cm
  • 1 x MIELE Professional hot plates
  • 1 x Exhaust hood
  • 1 x MIELE Professional microwave
  • 1 x MIELE Professional dishwasher
  • 4 x Custom-built stainless-steel refrigerated compartments
  • 2 x Custom-built stainless-steel cold rooms (total capacity approx. 1,500 l, located under crew quarters)

• Exterior Deck:

  • Icemakers as per GA
  • Refrigerators as per GA

• Crew Area:

  • 1 x Fridge
  • 1 x MIELE Professional microwave
  • 1 x MIELE Professional dishwasher

DECK EQUIPMENT

• 2 x Vertical anchor winches 5.5 kW 400V / 3-phase / 50Hz, 2 speed, bidirectional, with warping drum
• 2 x POSIDONIA anchors galvanised high tensile steel of approx. 350 kg (each) mod. Super High Holding Power
• 2 x 150-meter galvanized 19mm stud link anchor chains
• 2 x Vertical mooring capstans 4kW 400V / 3-phase / 50Hz on the aft deck, one port and one starboard
• Pool on bow deck with surrounding sunpads
• Cushioned bow deck settee with coffee tables
• Cockpit sunbed and 2 x armchairs
• Stern beach club with sunbeds, relaxation area, gym, sauna and 2 x port & starboard opening balconies
• Transformer gangway / swimming ladder with teak inserts and stainless-steel handrails
• Jacuzzi on aft sundeck
• 2 x Sofas, round coffee table, 2 x armchairs, dining table for 8 and wetbar with 3 stools on aft sundeck
• Multiplex sun awning system throughout
• 2 x Port and starboard manoeuvring wing stations
• Port side bow garage for tender and jet-ski with lateral launching and ceiling tender crane
• Shore power plug 400V / 3-phase / 50Hz

SAFETY EQUIPMENT

• According to Class and Flagstate requirements

OPTIONAL EXTRAS FITTED

• Vessel construction in compliance with MCA (LY3) code
• Custom exterior paint scheme
• Multiplex Awning System: Foredeck and upper deck
• Satellite TV System: KVH TV8
• Satellite Communication: KNS Z10 MK4
• Steam shower (Hammam) in Owner’s bathroom
• 16 x Underwater lights
• E-NAV thermal camera
• Video on Demand System: SEALUX central server with 8Tb internal storage
• CCTV system with 8 cameras and server storage
• Fully automatic side balcony in Owner’s suite
• Sliding side doors port and starboard in main deck saloon
• Waterjet joystick control with dynamic positioning
• Additional Jacuzzi on upper deck aft
• Sauna in beach club
• Safe box in each cabin
• Cigar humidor in main deck saloon
• Additional wine cellars in the upper deck dining area

TENDER

• WILLIAMS DieselJet 565 with 195 Hp YANMAR inboard engine
