Riepilogo

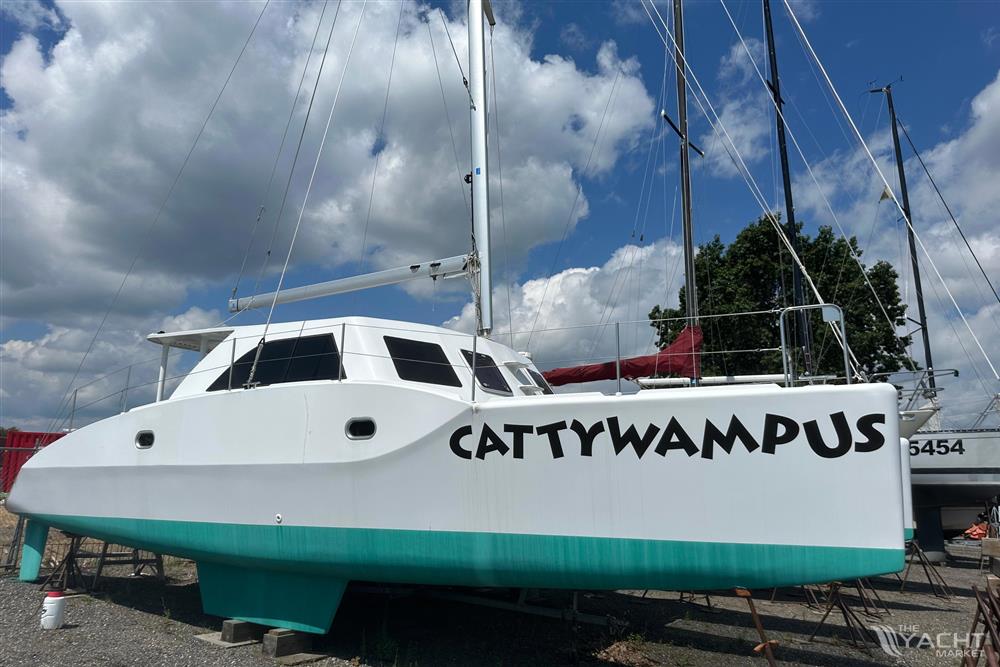

Cattywampus was built at Maine Yacht Center. The build is complete and the boat is fully operational under power. The fit out of systems, electrical and rigging is yet to be done. No sails.
Derek Kelsall 38ma full set of digital plans
2014 build year launched spring 2019
Vacuum infused panel construction H80 Divinycell and unidirectional glass
38.3 LOA
21 Beam
3.1 Draft (mini-keels foam filled)
Twin Tohatsu 20HP fuel injected outboards (2019) 9kts cruise speed 20hrs runtime
Two aluminum gasoline fuel tanks 16 gal each port and starboard
Two fireboy automatic fire extinguishers in each engine space
Kobelt hydraulic helm pump twin Vetus hydraulic steering cylinders
Twin spade rudders fabricated by Ruddercraft
New complete Sparcraft rotating aluminum mast and boom Facnor mainsail batten car system
New Dynex Dux standing rigging mast attachment lashings done by Gorilla Rigging in Newport
2 double berth aft in each hull
1 single berth forward on starboard
Beckson inspection hatches throughout
1 head forward on port AirHead compositing toilet
All 8 exterior opening hatches Lewmar medium profile 6 of them with screens
2 new AGM deep cycle batteries
3000W Victron Inverter Charger
Wall mounted wifi enabled TV
12VDC cabinet style, water cooled, under counter refrigerator and freezer
2 burner induction cooktop
Convection microwave
Dual pressure fresh water pumps, expansion tanks, stainless sink, faucet 1.5gal water heater
Two polyethylene water tanks 55 gallon each port and starboard
Numerous build parts and spares 4 new Harken winches, hardware, etc
New bottom
Additional Information
I have attached a drawing from the plans which shows the layout. The only departures from this are the main salon and aft deck in this boat the settee is forward on the starboard side and the L shaped galley is aft on the port side. A nav desk area exists on the port side forward. For the aft deck, instead of the central steering station shown, there are stations port and starboard with the wheel to port. The intent was that the starboard station would have sailing controls and an autopilot controller for follow up steering.
As for the other information:
Aft bunks 45W at forward end x 86L
Forward bunk 34W at aft end x 78L
Can it be completed where it is? Yes and no. Owner work is allowed in the outside storage areas 24/7. I could provide free storage for the boat through 8/31/25. Beyond that, I cannot guarantee a storage space (possible but not guaranteed). MYC personnel (not me) would be available to assist at retail labor rates rate sheet attached for reference.
Cost of where it is? Again, free until 8/31/25. After that, winter storage (if available) fee would be $7,980 excluding shrinkwrap cover.
What still needs doing? The list is long, but here are some of the items:
Deck hardware organization and mounting 4 new Harken size 48 winches are included with the boat but are not fitted
Complete running rigging and sails currently there are dyneema running backs and 2:1 main halyard. I have some used Class 40 sails that I might have recut for the first set of sails.
Windlass/anchor
Nav lights
Cockpit canvas enclosure if desired
Expansion of plumbing system currently just hot and cold water to galley sink
Expansion of electrical system currently just basic AC outlets and stove/micro circuits, DC system will need more circuits, distribution panel, solar, etc
Navigational electronics currently only wind and depth are installed (Garmin)
Shower sump in head (if desired) and bilge pumps (hoses and through hulls are in place)
Finish details locker doors, seadeck flooring, trim, more lighting
Lastly, and very importantly, the wooden ships wheel will not be going with the boat. I am happy obtain and provide something to mount to the helm until the new owner decides on a final choice.Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.Additional Details
Additional Information
I have attached a drawing from the plans which shows the layout. The only departures from this are the main salon and aft deck in this boat the settee is forward on the starboard side and the L shaped galley is aft on the port side. A nav desk area exists on the port side forward. For the aft deck, instead of the central steering station shown, there are stations port and starboard with the wheel to port. The intent was that the starboard station would have sailing controls and an autopilot controller for follow up steering.
As for the other information:
Aft bunks 45W at forward end x 86L
Forward bunk 34W at aft end x 78L
Can it be completed where it is? Yes and no. Owner work is allowed in the outside storage areas 24/7. I could provide free storage for the boat through 8/31/25. Beyond that, I cannot guarantee a storage space (possible but not guaranteed). MYC personnel (not me) would be available to assist at retail labor rates rate sheet attached for reference.
Cost of where it is? Again, free until 8/31/25. After that, winter storage (if available) fee would be $7,980 excluding shrinkwrap cover.
What still needs doing? The list is long, but here are some of the items:
- Deck hardware organization and mounting 4 new Harken size 48 winches are included with the boat but are not fitted
- Complete running rigging and sails currently there are dyneema running backs and 2:1 main halyard. I have some used Class 40 sails that I might have recut for the first set of sails.
- Windlass/anchor
- Nav lights
- Cockpit canvas enclosure if desired
- Expansion of plumbing system currently just hot and cold water to galley sink
- Expansion of electrical system currently just basic AC outlets and stove/micro circuits, DC system will need more circuits, distribution panel, solar, etc
- Navigational electronics currently only wind and depth are installed (Garmin)
- Shower sump in head (if desired) and bilge pumps (hoses and through hulls are in place)
- Finish details locker doors, seadeck flooring, trim, more lighting
Lastly, and very importantly, the wooden ships wheel will not be going with the boat. I am happy obtain and provide something to mount to the helm until the new owner decides on a final choice.
