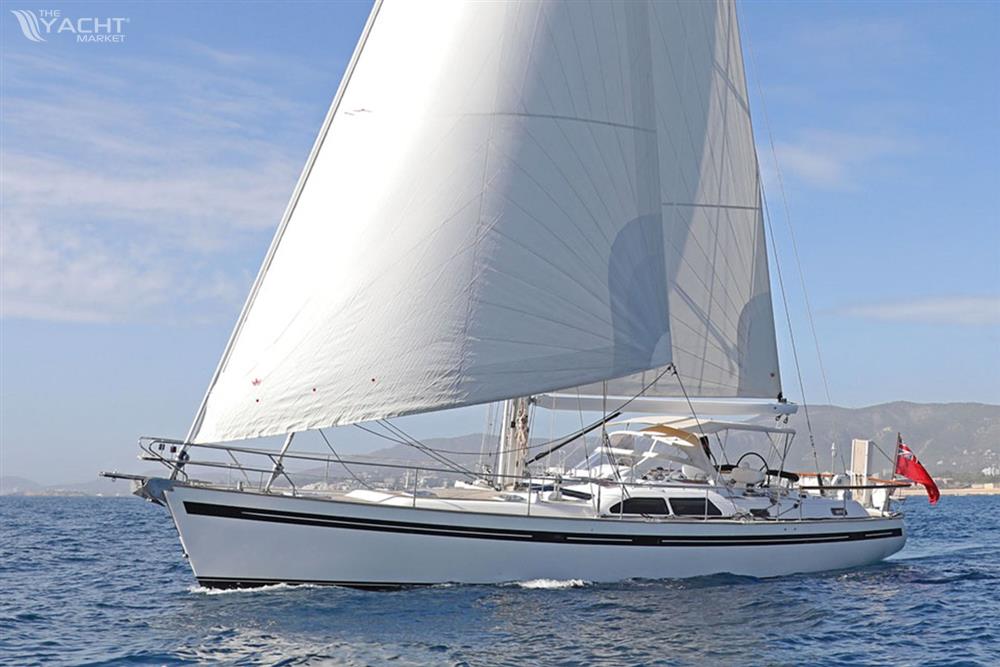

MOODY Moody 64 (2003) à vendre dans Palma, Îles Baléares, Espagne

English

Construction

RCD Status: The yacht conforms with the essential safety requirements of Directive 94/25EC or RCDII (2013/53/EU as appropriate (Recreational Craft Directive) and is categorised A – “Ocean”.

Hull, Deck & Superstructure Construction:

• Hand laid glass fibre construction to Moody specification of the time.
• Underwater sections from stem to keel further stiffened by utilising an Aramid (Kevlar) laminate to increase impact resistance.
• White hull.
• Antifouling and anodes changed February 2024.
• Transom includes hydraulic powered hinging transom door / swim platform.
• Swept teak laid deck. New early 2019.
• Deck is stiffened with balsa core, plywood backing plates in way of deck fittings.
• Deck edge incorporates a raised bulwark with lovely teak cap rail.
• Solid stainless rail, port starboard.
• Teak handrail around aft deck.
• Kevlar crane dinghy davits at stern.
• Generous lazarette stowage space.

Keel & Rudder:

• Lead / antimony ballast keel.
• MAISHA has the optional “shoal draft” keel with flattened bulb.
• This keel maintains the same centre of gravity position as the deeper fin keel.

Machinery

Engine & Gearboxes:

• 1 x Yanmar 4LHA-STE 230HP, 4-cylinder, turbo charged diesel.
• New turbo for engine 2021.
• Sigmadrive prop shaft vibration isolation (2020).
• Electronic Micro-commander throttle units, one at each helm.

Maintenance & Performance:

• Engine hours – 10,188 @ October 2024.
• Engine overhauled, heat exchangers, anodes replaced – 2023.
• Cruising speed – 7 knots @ 1700 rpm.
• Maximum speed – 10 knots @ 3000 rpm.
• Engine serviced annually.

Propulsion & Steering:

• Twin helm pedestal units connected by rod steering to a single rudder.
• Carbon fibre steering wheels.
• Emergency tiller system.
• Max Prop 3 Blade Classic feathering propeller.
• Prop-speed applied February 2024.

Bowthruster:

• Sleipner Sidepower SP220TC Electric (thrust 220Kg, power 15Hp/11.2Kw) with controls at each helm.

Electrical Systems

Voltage Systems:

• 24v ships system.
• 220v AC system with ring main.
• Simarine battery monitor (new in 2019).

Battery Banks:

• All batteries replaced 2022/23.
• 8 x Odyssey Performance service batteries, each 12V, 220Ah. Total 1,760Ah. Located under saloon floor.
• 2 x Odyssey 12V 100Ah engine start batteries, under aft bed.
• 1 x Exide AGM 60Ah genset start battery, under aft bed.
• 2 x Odyssey Performance navigation batteries, under aft bed.

Battery Chargers:

• Via 220v (shore or generator).
• Invertor and battery chargers replaced 2022.
• 1 x Victron Energy Phoenix charger 24V 25Amp.
• 2 x Victron Energy BluePower MultiPlus 24V, 3000VA, 70 Amp charger inverter.

Alternators:

• Engine driven 135-amp alternator for batteries.
• Alternator replaced 2023.

Generator:

• 1 x Onan generator 13.5kW.
• Gen set hours: approx. 2,350 @ October 2024. Total hours run estimated at approx. 7,450, as at time of former sale they were 5100. Meter replaced or reset.
• Generator serviced annually.

Shore Power:

• AC electrical system comprises a 220-volt, 50-amp, 50 Hz shore power with two inlet sockets, one for standard use and a second one for the air conditioning.

Plumbing Systems

Fresh Water & Water Heating System:

• Hot water supplied via 220v boiler (shore or gen set) and from engine calorifier.
• The boiler had a new element May 2024.

Watermaker:

• Schenker Zen 100 watermaker, 24V, new 2023. Located in aft lazarette.
• Watermaker display on/off by chart table.

Bilge Pumps:

• Replaced all bilge pumps 2022.
• 2 x automatic bilge pumps in main bilge.
• 1 x automatic bilge pump in engine room.
• Bilge pump in lazarette.

Tankage

Fuel:

• Total capacity of 2,145 litres.
• 2 x tanks of 1,815 litres in total. Located under saloon floor. Cleaned and tested and inspection plates added.
• 1 x stainless steel day tank with 330 litres capacity, replaced 2023.

Fresh Water:

• Total capacity of 1,365 litres, in 1 x GRP tank under saloon floor on starboard.

Grey/Blackwater Holding Tanks:

• Grey water system (bathrooms fitted with local grey water accumulation tanks with automatic discharge).
• Plastic black water tank (under VIP berth) with discharge pump.
• Black water tank replaced and black water system updated 2023. All guest heads feed one tank.

Navigation Equipment

• Nav systems upgraded 2023, including:
• Added all tanks, battery and atmospheric pressure data to multi function display unit.
• Replaced helm panels, adding all critical sail, power and lighting controls to helm positions.

In cockpit:

• 2 x Raymarine plotters MFD units, one at each helm (9” displays), new 2021, with Axiom 9 software SD1 Navionics, new 2021.
• Raymarine instrument repeaters over companionway x 3 – log/wind direction/depth, new 2021.
• Raymarine autopilot coupled to gearbox drive and remote fitted at starboard helm.
• Furuno 260E VHF at port helm.
• 2 x Plastimo binnacle compasses.

At chart table:

• Raymarine hybrid touch screen plotter/GPS at chart table, new winter 2023/24.
• AIS Raymarine, new 2018.
• 260E VHF at chart table.
• Icom handheld VHF.

Domestic Equipment

Galley:

• Force 10 gas cooker with oven and 3 x burners.
• TYTXRV extractor over cooker.
• Beko Microwave.
• Plates, glasses, cutlery, pans, utensils, etc.
• Water filter system and tap for drinking water, new 2020.
• Fridge unit, front opening.
• Freezer.
• Fridge and freezer compressors.

Heads/Showers:

• 3 x Vacuflush toilets.
• 1 x Jabsco manual toilet (crew).
• 3 x heads, 2 ensuite and one for day use off the saloon and starboard twin cabin.
• 1 x head and shower forward for crew.
• All heads include shower facilities.

Heating & Ventilation:

• Entire A/C system replaced 2023.
• Air conditioning and heating system – to the aft cabin, saloon, and port cabin + duct to crew cabin.
• Frigomar inverter stand alone AC units 2 x 16,000, 1 x 10,000.
• Hella Turbo fans throughout.

Entertainment:

• Fusion audio system in saloon new in 2018, at chart table.
• New amplifier at chart table and sub in cockpit.

Lighting:

• 24 volts LED interior lighting.
• All lights changed for LED and fitted LED strip lights on deck, and below – also LED deck lights -2018.

Accommodation

Summary of Accommodation:

• 9 berths in 5 cabins.
• 2 berths for crew in V berth cabin forward.
• 2 berths in starboard upper and lower berth cabin.
• Double berth in port side VIP cabin.
• Double berth in aft owner cabin.
• Single Pullman style berth in midships port cabin.
• Interior woodwork finished in teak.
• Interior woodwork renovated throughout 2023.
• Galley and saloon floors replaced 2023.
• Cream colour leather upholstery, which matches well with the woodwork and provides a light modern style.
• Interior headlining all replaced 2021.
• Mattresses to all beds recently replaced.

Note: This is the original layout. The midships port cabin is now used for storage, with a Pullman bed. The chair has been removed.

Description of layout from forwards:

Crew Cabin:

• Refurbished with new woodwork, locker, mattresses, etc.
• V berth.
• Crew head and washbasin.
• Accessed from deck hatch or via starboard guest cabin.

Starboard Guest Twin Cabin:

• Upper and lower berths, fitted with lee cloths.
• Hull window.
• Overhead hatch.
• Wardrobe and 3 x drawers.
• Separate head and shower aft of the cabin that can also serve as day head.

Port Guest Cabin:

• Double berth.
• Overhead hatch and hull port.
• Lockers and cupboard.
• Reading lights.
• Ensuite head and shower compartment forward of the cabin.

Saloon:

• Amidships and full width.
• Circular sofa and extendable dining table to port.
• Sofa to starboard.
• Hull ports each side.
• 2 x overhead hatches.
• Coaming windows on each side and forward section.

Galley:

• To starboard, aft of the saloon.
• U-shape for practical use at sea.
• Force 10 cooker.
• Fridge.
• Freezer.
• Microwave.
• Twin sinks inboard (with covers).
• Water filter system.
• Good storage.

Navigation Station:

• Aft of the saloon to port.
• Large chart table with seat.
• Electric panels located inboard.

Port Walk Through Cabin:

• Aft of chart table, in passage to owner´s cabin.
• Single fold down bed.
• Extra storage added 2023.
• Hull port.
• Good access to engine room.

Owner´s Cabin:

• Large double bed.
• Seats on each side of the bed.
• Ample lockers.
• Wardrobes to port and starboard.
• Reading lamps.
• Mirror.
• 4 x opening ports, 2 x hull windows, 2 x overhead hatches (2021).
• Forward and to starboard is an ensuite head and shower compartment.

Deck Equipment

Rig:

• Cutter rig.
• Selden aluminium white painted mast.
• Standard cutter rig with powered headsail, staysail, and mainsail furling.
• S/s wire standing rigging July 2015.
• Replaced all key running rigging – 2023.
• Mast and boom and spinnaker pole re-painted 2014.
• Removed boom, renovated and powder coated 2023.
• Hydraulic in-mast furling mainsail system.
• Furlex Selden hydraulic furling headsail unit.
• Furlex Selden hydraulic furling unit for staysail, new 2015.
• Self-tacking staysail system with track at deck.
• Pushbutton controls for genoa in/out at starboard helm.
• Pushbutton controls main and jib in/out at helm and companionway.
• Navtec hydraulic adjusters for vang and backstay with s/s panel by the starboard helm.
• Hydraulic vang and backstay reconditioned in 2020.
• Hydraulic blocks and power pack reconditioned in 2020.
• Headsail furlers reconditioned in 2020, including new hoses.
• Mast rigged for two spinnaker halyards.
• Added bowsprit, bobstay, gennaker – 2023.
• 2 x spreader lights.
• Diamond jumper struts in addition to running backstays.
• Passerelle halyard and fittings.
• Deck blocks and pad eyes for cruising chute.

Winches:

• 2 x electric powered self-tailing Yankee sheet winches, Lewmar 66 CEST.
• 2 x electric powered mainsheet staysail sheet & mainsail outhaul winch, Lewmar 58 CEST.
• 2 x secondary winches, manual Lewmar 58 CST.
• 2 x mainsheet traveller winches, manual Lewmar 30 CST.

Sails:

• All sails new 2023, by Elvstrom Superyacht.
• Mainsail.
• Yankee.
• Staysail.
• Gennaker.

General:

• Cockpit fridge, with new compressor 2023.
• Cockpit table renovated 2023.
• Replaced windscreen 2023.
• New side access step / gate system for use at anchor or when alongside – 2023.
• Custom coachroof passerelle storage rack for use when sailing offshore – 2023.
• Air compressor for inflatable toys installed in lazarette – 2023.

Anchoring & Mooring Equipment:

• Anchor windlass - Lewmar 3000 reversible electric unit with handset control forward and foot controls at the bow.
• Stainless kedge anchor roller at stern.
• Main anchor - 60 kg plough anchor with 100m of 12mm chain.
• New anchor chain 2019.
• Secondary anchor - 30 kg Bruce anchor.
• Emergency anchor.
• Fenders, mooring lines etc.

Covers, Canvas & Cushions:

• Foredeck cushions and sunshade for foredeck, remade 2023 for storage under master bed when not in use.
• New fixed windscreen – 2023.
• Bimini and sprayhood new 2023, modified and enlarged design.
• New foredeck sun tent 2023.
• New cockpit side and hatch shade covers 2023/24.
• Cockpit cushions and covers.
• Covers for helms and wheels – new 2024.
• Cover for cockpit table.
• Padded cover for passerelle – 2022.

Tender & Outboard:

• Plastimo RIB 3.5 tender, new 2023.
• New 20hp Yamaha outboard, plus steering and electrics – 2024.

Safety Equipment

• Replaced all safety equipment 2022/23.
• Sea Safe 8 person liferaft on rail in canister.
• 6 person soft pack leisure liferaft in aft coachroof locker.
• ACR Epirb on aft rail.
• Danbuoy on aft rail.
• Jonbuoy on aft rail – new 2024.
• 6 x Spinlock deck vests.

Fire-Fighting Equipment:

• Fire extinguishers, serviced annually.
• Engine room FM 200 automatic fire extinguisher.
