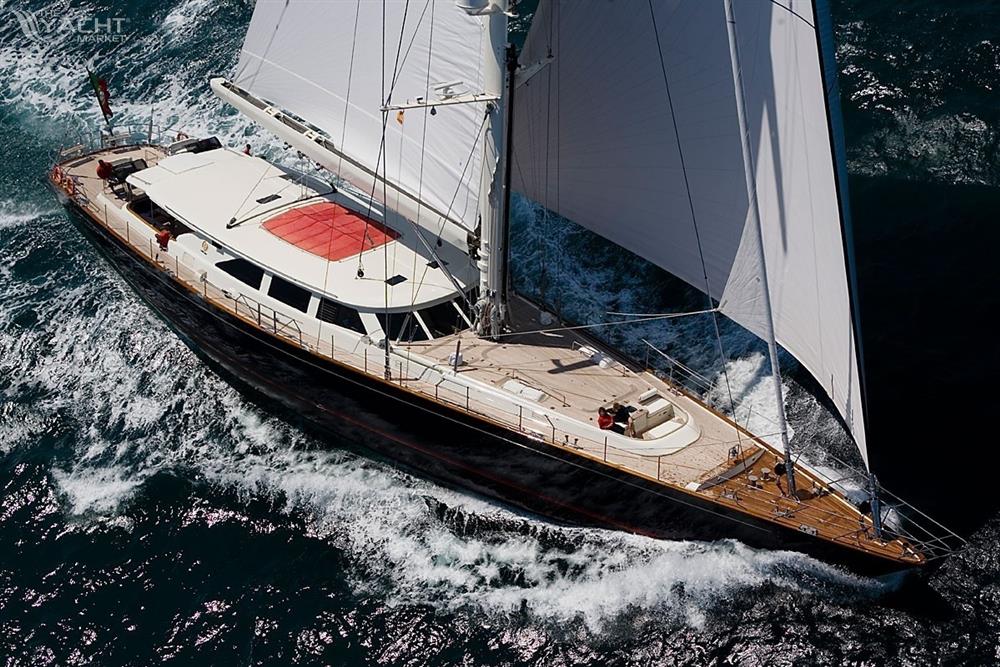

Originally delivered in 2006 from the very well-known Perini Navi shipyard in Viareggio, this PERINI NAVI 45M incorporates excellent engineering by Perini Navi and her naval architecture is by the famed Ron Holland. She is also somewhat unusual in Perini terms, having been delivered as a sloop-rigged sailing Superyacht to a fully custom design and owned by the same Owners ever since her launch.
Offering exhilarating sailing performance, this PERINI NAVI 45M SY also cruises smoothly under engine at 10 knots, and partly because she has no flybridge and is considerably lighter than other Perinis of similar size, she is no slouch under sail with the ability to reach a top speed of approximately 14 knots under full sail with a favourable wind.
The unique custom designed interior features a very large main saloon with dining area, and below she offers accommodation for up to 12 guests thanks to her family-friendly (or charter) 5-stateroom layout (although previously commercially registered, she’s now a private vessel). One notable feature is the full beam Owner’s cabin located aft which has two double beds on each side, ideal for comfortable passage-making. Design-wise the teak wood interior is somewhat nautical but light in colour and hard to dislike, and it provides a second Owner with a relatively blank canvas which would be very easy to personalise.
Outside, the decks and wide gangways feel uncluttered, and there is a huge sunbathing area located on the cockpit roof. The aft deck areas are also very spacious and provide a huge covered aft cockpit area with no less than three seating areas and a bar, all out of the sun and also well out of the way of the action while sailing so that guests can remain undisturbed. Further aft there is also a beach club/tender bay.
Always well maintained and comprehensively refitted in 2019 and 2024, this PERINI NAVI 45M sailing yacht for sale, has now served her purpose for her current Owners, who have priced her fairly, so that a new Owner can take her onto new adventures. Viewings are highly recommended.
MAIN CHARACTERISTICS
- Builder: Perini Navi (Viareggio, Italy)
- Model: Perini Navi 45M SY
- Naval Architecture: Ron Holland / Perini Navi
- Interior Design: Perini Navi / Owner
- Type: Sailing Yacht / Motorsailer / Superyacht / Sloop
- Hull Material: Steel
- Superstructure Material: Aluminium
- Decks: Teak
- Keel: Centreboard
- Built: 2006
- Refit(s): 2019 / 2024
- Length Overall: 45.30 m (148’ 6”)
- Length Waterline (full load): 41.10 m (135’)
- Beam (max): 9.04 m (39’ 6”)
- Draught (keel up): 4.14 m (13’)
- Draught (keel down): 9.14 m (25’ 5”)
- Displacement (full load): 353,000 kgs (778,232 lbs)
- Gross Tonnage: 309 GT
- Main Mast Height (above DWL): 52.41 m (172’)
- Total Sail Area: 1,187 m2 (12,518 sq ft)
- Classification: ABS, Malta Cross A1 AMS Yachting Service + Bureau Veritas
- Flag of Registry: Madeira, Portugal
- Lying: La Spezia, Italy
CONSTRUCTION
- Steel Hull: AH 36
- Aluminium Alloy superstructure
- 16mm teak decks
- 5m mobile drift keel in fiberglass
SURFACES
- Total Deck Area: 298 m2 (3,208 sq ft)
- Cockpit and Sundeck Area: 62 m2 (667 sq ft)
- Saloon and Wheelhouse Area 62 m2 (667 sq ft)
- Total Owner and Guest Cabin Area: 94 m2 (1,012 sq ft)
- Lazarette Area: 20 m2 ( 215 sq ft)
- Total Crew Area: 56 m2 (603 sq ft)
PROPULSION
- Type / Fuel: Single Diesel
- Main Engines: 1 x 1400 Hp (1045 kW) CAT C32 @ 2300 RPM
- Engine Hours: 6,827 h (June 2022)
- Drives: Shaft
- Speed @ Maximum Power: 14.1 knots
- Speed @ Maximum Continuous Rating: 13.5 knots
- Cruising Speed: 10 knots
- Range: 3500 NM @ 10.5 knots
- Gearboxes: HUNDESTED CPG50 reduction ratio 4.12:1
- Propeller: HUNDESTED variable pitch control 4-blades feathering
TANKAGE
- Fuel Capacity: 31,000 l (8,190 US gallons) in 3 tanks
- Day Tank Capacity: 650 l (171 US gallons) in 1 tank
- Fresh Water Capacity: 7,600 l (2,007 US gallons) in 2 tanks
- Lube Oil: 400 litres (105 US gallons)
- Sludge Tank: 400 litres (105 US gallons)
- Grey / Black Water: 1,600 l (422 US gallons) in 1 tank
SAILS & RIGGING
- Main Sail: 1 x North Sails 432 m2 boom furling full battened (2006) revised 2011
- Staysail: 1 x North Sails 268 m2 furling (new 2015 ONESAIL)
- Genoa: 1 x North Sails 491 m2 furling (2006)
- MPS: 1 x North Sails 1025 m2 (2006) revised 2011 - with new sock 2011
- Halyards:
- 2 x Main sheet
- 1 x Halyard main sail
- 2 x Genoa sheet
- 1 x Genoa halyard
- 2 x Staysail sheet
- 1 x Staysail halyard
- 2 x MPS sheet
- 4 x Service halyards
- 1 x Tender hoist
- 2 x BIGO control halyard
- Mast: 1 x PERINI NAVI aluminium mast 52.41m from waterline, 5 spreader
- Boom: 1 x PERINI NAVI furling boom electric, carbon fibre
- Boom Vang: 1 x PERINI NAVI stainless-steel, hydraulic
- Polo Lift: 1 x PERINI NAVI, titanium
- Sail Track & Blocks: 1 x HARKEN
- Rigging: PERINI NAVI system, stainless-steel rod
- Furling Gear: 2 x PERINI NAVI system, electric
- Winches: 2 x HARKEN 1120 3-speed for service
- Manual Winches: 2 x ANTAL W66 manual winches double speed
- Captive Reel Winches: 7 x PERINI NAVI electric winches for sails operation
- 3 x PERINI NAVI electric winches for tender launching
- 2 x BIGO control halyards
ACCOMMODATION
- 10 + 2 Guests in 4/5 en-suite Staterooms + Studio
- Guest Staterooms: 4/5
- Sleeps: up to 12
- Guest Bathrooms: 5
- Crew Cabins: 3
- Crew: 7
- Galley & Laundry: Lower deck
- Main Deck: Saloon, dining area, day-head and helm station
- The Owner’s suite is located aft and has two king size beds and two bathrooms (one of which also has a steam room)
- This cabin can either be used in luxury mode as one full beam Owner’s suite with a choice of the two beds for passage making and a further owner’s office studio to starboard
- Alternatively, the Owner’s cabin can be divided into two cabins via a soundproofed sliding partition on the centreline. The starboard cabin then has the attached office/studio with a sofa bed which sleeps one adult or perhaps 2 children (this sofa bed could also easily be made bigger if desired but please note that the studio cabin is not en-suite and therefore not a standalone cabin per se)
- There are three further guest cabins, one double and two twins, each with an extra Pullman bunk and all of which are en suite. In total there are 10 permanent guest berths + the sofa bed
- In the crew area there are 3 x twin crew cabins (all en suite) and a further Pullman bed located in the Laundry, for up to 7 crew berths
- There is also a comfortable crew mess area
MAIN MECHANICAL EQUIPMENT
- Rudders: Semi balanced with skeg mounted bearing
- Steering System: Electro-Hydraulic steering gear system Type: CL.2-B401
- Bow & Stern Thrusters: Extractible HUNDESTED A/S model FT 2½ R 75 Hp
- Electrical System: 24V / 220V /380V - 50Hz
- AC System: 220V /380V - 50Hz
- DC System: 24V
- Generators:
- 1 x 70 kW CAT 380V - 50Hz, 3-Phase + N
- Generator Hours: 12,300 h (July 2022)
- 1 x 40 kW CAT 380V - 50Hz, 3-Phase + N
- Generator Hours: 2,588 h (July 2022)
- Emergency Generator: 1 x 12 kW MASE IS 14.5 T, 380V - 50Hz, 3-Phase + N (in lazarette)
- Shore Power:
- Converter Output: 400V / 230V - 50Hz
- Inlet cable: 1 per 125Amp retractable 30m
- Engine Start Battery: 1 x Per 24V 200Amp Gel battery
- Generators Start Battery: 1 x Per 24V 150Amp Gel battery (each)
- Service Battery: 10 x Per 24V 400Amp Gel batteries (also for E lighting)
- Starting Batteries: E/G 1 x Per 12V 100Amp Gel battery
- Radio Battery: 1 x Per 24V 150Amp Gel battery
- Air Conditioning:
- 2 x CONDARIA Unitseach 72,000 kcal/h
- 2 x Sea water pumps
- 2 x Chilled water pumps
- 4 x Compressors
- 1 x Boiler for hot air (heater)
- Fan Coils: 6 x crew, 3 x wheelhouse, 4 x main saloon, 6 x Owners/Guest cabins, 2 x ECR
- Compressed Air System:
- 2 x MATTEI compressors w/ max. pressure 10.5 bar
- 1 x 100 litres air receiver tank
- 1 x RACOR air dryer
- Ventilation: Extractors in Crew area, Galley, Wheelhouse, Main Saloon, Owners/Guest Area
- Engine Room: Port and Stbd side fan invertible
- Water Makers: 2 x IDROMAR MC5S each 5,500/day (total 11,000 litres per day)
- Water Boilers: 2 x GIANNESCHI 200 liters 5 kW
- Fresh Water Pump: 2 x GIANNESCHI & RAMACCIOTTI each 70 l/mn
- Hot Water Pump: GIANNESCHI & RAMACCIOTTI CB-CG
- Toilet System: 10 x JET MARINE WCs
- Sewage Treatment: HAMANN
- Fuel Oil Transfer Pump: 1 x Gianneschi & Ramacciotti
- Fuel Oil Centrifuge Pump: 1 x ALFA LAVAL MAB 103B-24
- Fuel Oil Filters: FACET model VFCS 21/C-PG primary filters
- Lube Oil Pump: 1 x GIANNESCHI & RAMACCIOTTI
- Oil Water Separator: FACET model CPS 1.6 E
- Tank Discharge Pumps: 2 x JET vacuum each 3kW
- Tanks for Hydraulic Systems:
- 1 x 440 litres for PTO service
- 1 x 100 litres for mobile drift and Vang
- 1 x For Shell door, Gangway and Davit units
- Hydraulic Pumps: SAUER Danfoss for PTO service
- ABB motor M3000 for mobile drift and Vang
- ABB motors pump for Shell door, Gangway, Side ladder and Davit units
- Primary Bilge Pump: 1 x GIANNESCHI & RAMACCIOTTI ACM-BT 220/380 l/mn 4kW
- Secondary Bilge Pumps: 7 x GIANNESCHI & RAMACCIOTTI Mini Maxi Sub Vortex; 1 for each compartment
- Fire Pump: GIANNESCHI & RAMACCIOTTI ACM-BT 220/380 l/mn 4kW
- Bilge Compartments: 7 x Compartments w/ high level alarm + bilge suction
NAVIGATION EQUIPMENT
- Wheelhouse:
- Magnetic Compass: JUPITER Jupiter 180
- Gyrocompass: SPERRY MARINE C-Plath Navigat 2100 with 1 x Control & Display unit
- Autopilot: SPERRY MARINE Navipilot V HSC
- Radar: 1 x FURUNO Far 28x7 series Radar-Arpa
- Navnet: 1 x FURUNO Navnet with radar plotter FURUNO 1943C colour screen
- Charts: NAVIONICS charts interfaced with gyrocompass
- GPS: 2 x FURUNO GP 90
- 1 x FURUNO ETR 6/10 sensor and colour LCD
- Echosounder: FURUNO Sounder FCV-600L
- AIS: 1 x FURUNO AIS FA-100
- ECDIS: 1 x NAVISAILOR interfaced with GPS AIS Gyro Navpilot
- 2 x Displays B&G Hercules 2000 series
- Navtex: 1 x FURUNO NX-500
- Rudder angle indicator
- CAT main engine control & display touch screen
- Jib sail control joystick
- Mobile drift control joystick
- 3 x UPS 1500kva each
- Navigation lights panel
- PC + scanner/printer
- Aft Helms Port & Starboard:
- 1 x Monitor 20” for each helm
- Sails control station for main sail, genoa and jib for each helm
- Mobile drift joystick on port helm
- CAT main engine control & display touch screen for each helm
- Vang joystick on starboard helm
- NAVIPILOT V HSC autopilot for each helm
- 4 x B&G displays
- VHF DCS on starboard helm with speakers
COMMUNICATION EQUIPMENT
- VHFs: 2 x VHF DSC FURUNO & SKANTI with relative handset
- GMDSS Station: Satcom C
- SATCOM: V-SAT broad band antenna connection
- Telephone Exchange: 1 x Telephone switchboard PANASONIC KX TDA-100 and 1 x PANASONIC desk telephone GSM/GPRS dual band and internal calls
- Transceiver: 1 x THRANE & THRANE Fleet 77 with handset
- GMDSS: Station Satcom C
- Internet: Wi-Fi internet connection throughout
ENTERTAINMENT EQUIPMENT
- Central Sound System:
- CRESTRON remote control in main saloon with the following functions:
- DVD, Terrestrial TV signal, Satellite TV signal, MP3 Server, Central Turner FM/AM, CD Player, iPod, Navisailor repeater on TV Screen
- Main Saloon:
- 2 x Dome SEATEL TV satellite antenna
- PIONEER TV 50” colour plasma (2006)
- 1 x Decoder SKY
- 1 x PIONEER DVD player
- 1 x PIONEER DTS Dolby digital
- 1 x BOSE Home Theater with 15 speakers and sub-woofer
- 1 x iPod dock station
- 1 x MARANZ Music server
- 1 x SAMSUNG VHS player
- 1 x DENON TV 1500RD AM/FM stereo turner unit
- 4 x Speakers B&W CCM 50
- Owner’s Cabin:
- 1 x SHARP Aquos 20” colour TV LCD
- 1 x Decoder TV SAT
- 1 x PIONEER DVD player
- 1 x PIONEER DTS Dolby digital
- 4 x Speakers B&W CCM 50 + 2 Speakers for the bathroom (same type)
- 1 x CRESTRON infrared remote control
- 1 x iPod dock station
- Guest Cabins (each):
- 20” SHARP Aquos colour TV LCD
- 1 x Decoder TV SAT
- 1 x SONY mini Hi-Fi
- CD/DVD Player – AM/FM turner unit
- 2 x Speakers B&W CCM 50
- 1 x iPod dock station
- 1 x PHILLIPS infrared remote control
- Aft Cockpit:
- 4 x Speakers B&W CCM 50
- 1 x Audio access keypad remote control installed in the wall
- 1 x CRESTRON waterproof remote control
- Wheelhouse:
- 1 x PIONEER turner CD player
- 2 x Speakers B&W CCM 50
- Crew Mess:
- 1 x TOSHIBA 23” 16:9 colour LCD TV
- 1 x Decoder TV SAT
- 1 x PIONEER DVD player
- 1 x TEAC CD/turner unit amplified
- 2 x Speakers B&W CCM 50
- Crew Cabins (each):
- 1 x PIONEER turner CD player
- 2 x Speakers B&W CCM 50
- Galley:
- 1 x PIONEER turner CD player
- 2 x Speakers B&W CCM 50
- Laundry:
- 1 x PIONEER Turner CD player
- 2 x Speakers B&W CCM 50
- Lazarette:
- 1 x PIONEER turner CD player
- 2 x Speakers B&W CCM 50
GALLEY & LAUNDRY EQUIPMENT
- Galley:
- 1 x Extractor
- 1 x Black granite countertops
- 1 x SAMSUNG microwave oven
- 4 x ANGELO PO Professional cook tops
- 1 x ANGELO PO grill
- 1 x ANGELO PO conventional oven
- 1 x ANGELO PO steam oven
- 1 x GAGGENAU deep fryer
- 1 x MIELE dishwasher
- 3 x Standard stainless-steel sinks + 2 taps with hand shower
- 1 x Tap with salt water
- 2 x Macerators
- 1 x Waste disposal
- Laundry:
- 2 x MIELE Industrial washing machine
- 2 x MIELE Industrial drying machine
- 1 x MIELE folding ironing machine
- 1 x Ironing board
- 1 x Stainless-steel sink + tap with hand shower
- Linen cupboard and shelving
- Galley Refrigeration:
- 1 x 4 Doors + 3-drawers fridge
- 1 x Door freezer
- 1 x HOSHIZAKI ice maker
- Lazarette Refrigeration:
- 1 x HOSHIZAKI 4 Doors
- 1 x HOSHIZAKI ice maker
- 1 x Wine cellar
- Saloon Refrigeration:
- Aft Cockpit Refrigeration:
DECK EQUIPMENT
- Anchors: 2 x 600kg stainless-steel each recessed on hawse-pipe
- Chains: 2 x 150m each side -galvanised steel naval chain, diameter 24mm
- Anchor Windlasses: 2 x OFFICINA NANNI independent vertical axis, electric
- Mooring Winches: 2 x 3-Speed electrical on aft main deck
- Passerelle: Hydraulic, telescopic remotely controlled
- Side Ladders: Retractable into main deck midship w/self-levelling steps
- Awning covering the entire aft cockpit and dining area
- Side shell door opening to port side swim platform
- Saloon Doors: 2 x Sliding doors infrared sensors, pneumatic mechanism and belt driven
- Deck Lockers: 6 x Deck store located amidship and bow area
- Portlights: 12 x Laminated double-glazed
- Hatches: Flush at crew access, engine room and lazarette
- Watertight Bulkheads: 5 x Forepeak, crew quarters, forward engine room, aft engine room, lazzarete
- Soft Furnishings:
- Cushions for solarium area
- Cushions for aft cockpit bench
- Cushions for forward bench
- Mooring Lines:
- 4 x White nylon mooring lines 30m - 40mm diameter
- 1 x White towing line 180m
- Covers:
- 4 x External helms and relative wheels
- 2 x External helm seats
- 10 x Covers for wheelhouse and saloon windows
- 6 x Covers for all external winches
- 2 x Covers for life rafts
- Covers for aft Cockpit furniture including chairs, tables & bench suite
- 1 x Tender cover
- 1 x Cover for solarium area
- Fenders:
- 6 x Inflatable Polyform fenders F11
- 4 x Inflatable Polyform fenders A5
- Complete set of International Signals Code Flags
- 1 x Bluetooth remote control for tender launching
- 1 x White towing line 180m length
- 2 x Boat hooks in carbon fibre 4 meters length
- Various materials (buckets, brooms, brush, etc...)
SAFETY & SECURITY EQUIPMENT
- Safety:
- 2 x RFD Limited mod liferafts MK III for 20 person each
- 18 x Immersion suits
- 20 x Lifejackets for adults + 4 lifejackets for children
- 4 x Solas Life rings on main deck aft – 2 with 30m ropes and MOB signal buoys
- 1 x EPIRB JOTRON 30S MK2 406-121.5 MHz
- 1 x JOTRON Tron SART radar transponder 9 GHz
- 5 x White hand flares
- 8 x Red hand flares
- 6 x Rocket flares
- 2 x Smoke signals
- 4 x PAIN WESSEX throwing lines 250 m
- 2 x Fire suits + accessories (boots, hatchets, rope, hood, gloves, etc...)
- 2 x Breathing devices 200bar + 2 spare cylinders
- 1 x Fire blanket
- 2 x Torches with power supply dock
- Security:
- 2 x Monitors 23” colour LCD (Wheelhouse) and 19” colour LCD Crew Dinette
- Engine control and instrumentation, full generator control and instrumentation, tanks level, control for exterior and interior lighting, sailing instrumentation monitoring, doors and hatches monitoring
- 2 x Dome cameras on port and stbd spreaders (Zoom/Focus)
- 1 x Dome Camera in Engine Room (Zoom/Focus)
- 1 x Fixed Camera on Wheelhouse
- 2 x Control Stations – Wheelhouse and Crew Dinette
- Firefighting:
- 38 x Fire extinguishers various types
- 2 x Fire suits + accessories (boots, hatchets, rope, hood, gloves, etc...)
- 2 x Breathing devices 200bar + 2 spare cylinders
- 1 x Fire blanket
- 2 x Torches with power supply dock
- Fire panel Concilium in wheelhouse with sensors throughout the yacht’s ceiling
- Engine room dedicated cylinders CO2 through fixed system with control station into Lazarette
- Medical kit in accordance with class Oceanic 1
TENDERS & WATERSPORTS
- CASTOLDI 5.00m Diesel Jet-tender 115 Hp
- NOVURANIA 3.50m Rescue/crew tender with overboard engine YAMAHA 15 Hp
- Pair of water skis
- Wake board complete
- Rope for water toy towing
GYM EQUIPMENT
- 1 x Tapis roulant TECHNOGYM
- 1 x Reclined bike TECHNOGYM
REFIT & MAINTENANCE HISTORY
- 2016:
- ABS Special survey 10 years (revised shaft, all tanks checked, ecosound on hull)
- Reseal main deck with new Polymer and sanding teak
- Upgrade of A/C control panel
- Revised all A/C pumps
- 2017:
- Replaced main engine control / monitoring panel on wheelhouse
- Replaced pipes keel
- Upgrade / Maintenance 2019:
- Sanding teak decks
- Painting and varnishing the gunwale (3 times per year)
- Replaced damaged teak planks
- Service main engine as per maintenance schedule
- Service 3 generators as per maintenance schedule
- Revision of 3 jet pumps in WC system
- Revision of 1 fire pump
- Revision of 2 bilge pumps
- Revision of A/C pumps
- Perini Overlap system upgrade - mounted on all sail winches
- Modified PTO tank for a better flow
- Replacement of 3 service halyards
- Replacement of tender hoist
- Replacement of 2 main boom sheets
- Winches and Anchor windlass maintenance (yearly)
- Antiskid paint on sundeck
- Installation of new cathodic protection monitoring system
- Service of pneumatic cylinders backstay
- Black and grey water tank inspected and cleaned
- Serviced jib and genoa furlers
- New service and engine batteries (3 generators included)
- Sailing electronic manoeuvres (Perini) upgrade
- Bridge electronic instruments upgrade (new VHF and UHF radio)
- Revision of 2 air compressors MATTEI max. pressure 10.5 bar
- CAT C32 6000 hrs service – New aftercooler and pipings connected, new injectors
- 3 Generators maintenance
- HUNDESTED pitch propeller serviced-electronic check and all electrovalves on the pitch (6) replaced
- SKY decoders and new TVs fitted in all cabins
- New external monitors FURUNO for navigational purposes replaced
- Tender CASTOLDI engine and jet drive completely serviced
- Air conditioning check and all air filters replaced
- 2022:
- Engine and generators routine maintenance
- Antifouling and anodes
- Full keel system service
- 2024:
- 3 x New Gensets
- 1 x New tender CASTOLDI
- 1 x New Jet-ski
- 1 x New Flite-Board and all new toys
- New bridge navigation and communication equipment
- New electric panels upgraded
- Renewal of all the rig and equipments (whip one is over 1m)
- Master cabin refurbishment by ULUTAS Design
- Lazarette area upgraded like beach club with aircon
- Shell door and aft door renewal
- New sailing monitoring system
- Deck repair teak and Sikaflex joints
- New upgraded entertainment system
- CCTV unit and NVR upgraded
- All cables changed inside of the mast
- FLEET broad band FB500 installed
- New Sat C installed
- Lighting monitoring installed
- New engine control unit AVENTICS installed
- All fan coils changed
- Bridge power supply
- All batteries changed
- All battery chargers changed
- All tanks and hydraulic oil changed
- Fresh air system renewal
- Flybridge area new (re-designed and re-styled)
- New bar installed with fridge
- Interior and exterior lighting change (LED)
- Underwater lights installed
- Lloyds Class – Reg
- Full engine service
- Hull treatment
- Stock of spare parts
