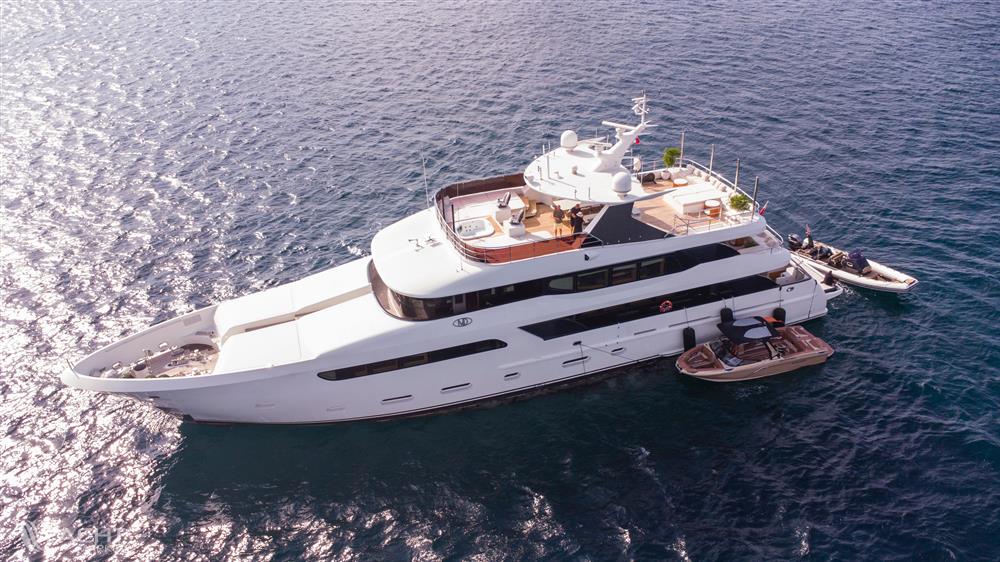

This 40-meter three-deck luxury superyacht certainly is one of the best products of Factoria Naval de Marin. Steel hull and aluminum superstructure gives her maximum durability and seaworthiness. The boat was delivered in 2014 and received many positive reviews at the Monaco Yacht Show that year.
Exterior designed by Giorgio Vafiadis is stylish and recognizable, with pure lines and elegancy. You will get a strong feeling of being onboard of much bigger yacht. Luxury yet laconic interior was created by Askdeco and recently renewed and upgraded by the present Owner. The size of the vessel allowed architects to create a spacious interior like in a magnificent modern style country house. Extensive glazing of public spaces adds a large amount of daylight. The use of mirrored ceiling panels makes interior even more individual and expands the onboard space.
The full-beam Upper Salon is a truly unique feature for a yacht this size. None of the other yachts in the category or bigger doesn’t provide the same size for a second Salon. Spacious full-beam master stateroom is located on the Main deck and 4 other cabins are on the Lower deck, all with en-suite bathrooms. FNM 40 can accommodate up to 10 guests and 7 crew.
The yacht stands out with a magnificent huge sundeck incl. Jacuzzi and two massive sun cushions. She also has a big spacious garage for a 6 m tender and the toys. The cruising speed of this full displacement yacht Powered by two MAN diesel engines 1000hp each FNM 40 can reach a top speed in 14 knots with the cruising speed about 12 knots,. She is in perfect condition, all systems works great.
Main Characteristic
BUILDER (OUTFITTING): FNM, marin, spain
YEAR: 2013 (reg 2014) Refit 2022
Loa: 39.6m
Beam: 8m
Draft: 2.3m
Classification: BUREAU VERITAS PLEASURE
Tonnage: 431
Displacement: 388 tons
Cruising speed: 12 kn
Cruising speed rpm: 1800
Max speed: 14.1 kn
Max speed rpm: 2100
RANGE (on cruising): 2600 NMI
Fuel tanks #: 8
Fuel tanks cap.: 65982 l
Fresh water tanks #: 2
Fresh water tanks cap.: 10243 l
Holding tanks #: 4
Holding tank cap.: 6094 l
PROPULTION
Engine make: man
Engine model: d-2842
Primary engines: Inboard
Drive type: Shaft drive
Engine: port
Hours: 2074
Power: 735 kw
Propeller type: 5 blade
Engine: Starboard
Hours: 2085
Power: 735 kw
Propeller type: 5 blade
PERFORMANCE
Maximum speed 14 kts at 2,100 rpm / 290 l/hr
Cruising speed 10 kts at 1,500 RPM / 200 l/hr
Economical speed 7 kts at 1,200 RPM / 100 l/hr
Range at cruising 2,600 nm
Range at economic 4,600 nm
MACHINERY
Gearboxes: 2x ZF 220
Stabilizers: Wesmar Dynamic Stabilizers plus (underway)
SIS - Stabtech Systems Static Stabilizers (zero speed)
Generators: 2x 68 kW Kohler 70EFOZD
Electricity: 230/380 V, 50Hz A/C / 24V DC Battery charger 40 amp/hr
Air conditioning: Condaria reverse cycle (300.000 BTU)
Bowthruster: NV 70 kW
Sternthruster: NV 50 kW
Watermakers: (2) Aquamar watermaker 225 l/hr each
Seawage system: Head Hunter
Bilge oil separator: RWO Skit bilge separator 1 m3/hr
Boilers: 2x 1,200 W
Cleaning system: Alfa Laval
GALLERY/LAUNDRU EQUIPMENT
2x Refrigerators
2x Icemakers
2x Freezers
2x Bosch washing machines
Oven
2x Bosch dryers
2x Microwaves
Centralized vacuum cleaner
Dishwasher
Dumb waiter
COMMUNICATION/ NAVIGATION & ENTERTAINMENT EQUIPMENT
2x Sailor SatComs TT300E
Panasonic internal phone system TES824
Sailor SSB System 5000 Simrad
SART SAT-0141
2x VHF Sailor RT-5022 Sailor
Mini-C SSAS TT-3000
3x VHF handheld Sailor JP-3520
3G Router VDR-100G3
Navtex ICS Nav 7
NAVIGATION EQUIPMENT
Simrad autopilot AP-50
JRC depthsounder JFE-380
Simrad plotter GB-40
Simrad wind instruments IS-15
Simrad radar RA-80/90
Simrad gyrocompass MX-500
Simrad radar RB-718A
Simrad rudder indicator
Simrad GPS GN-33 / CX-34
ENTERTAINMENT EQUIPMENT
Samsung TV – All new (2022)
TV´s in upper saloon, owner’s cabin and guest cabins
TV in crew mes
Satellite TV antenna, no receivers
TENDERS & TOYS
Castoldy 6m. In the garage.
DECK EQUIPMENT
2x Anchors 240 kg each. 2x 120 m anchor chai
Electro-hydraulic stern gangway
Electro-hydraulic side boarding ladder
2x Carral anchor winch SV-17
Underwater lights at stern
2x Carral capstans MV-04
Search light
SWL Crane in main garage (1 Ton
Horn
2x Cranes in bow garages (500 kg)
SAFETY & SECURITY EQUIPMENT
2x RFD life rafts for 20 persons each
Vigotronica alarm system
Fire control system Marinelec FM200
Simrad EPIRB
Ultrafog fire extinguishers
Throughout Closed circuit TV
