Benefiting from a significant refit in 2009/10, the Moody 419 AXIOM has enjoyed continual upgrades throughout the current ownership. She is now for sale as her owners look to downsize. The inventory highlights include:

Nanni N4.50 marine diesel engine (2011)

Lewmar tunnel mounted bow thruster (2011)

Raymarine E7 chartplotter

Raymarine AIS (2018)

Raymarine i60 navigation instruments

Raymarine autopilot system with P70s control

LP Neptune 4500 gas cooker. Two-burner, oven and grill (2022)

Eberspacher diesel-fired blown air heating system

Standing rigging fully replaced in 2023

Pentax Dacron Mainsail, fully battened, slab reefing by Goacher Sails (2010)

Pentax Dacron, roller reefing Genoa by Goacher Sails (2016)

Rocna anchor

Aquamarine Soft-Line 270 inflatable dinghy (2021)

Simpson and Lawrence davits for dinghy

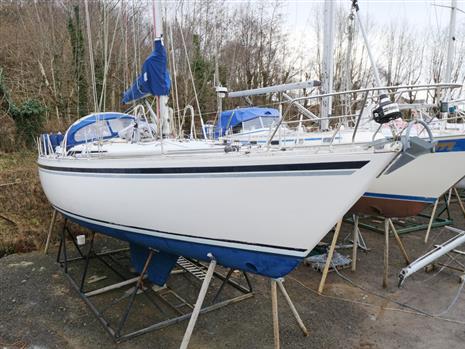

Lying ashore at Craobh Marina, Argyll the Moody 419 AXIOM is available for immediate viewing by prior arrangement.

CONSTRUCTION

Hull Construction:

Single piece GRP moulded hull.

Plywood structural bulkheads internally glassed to hull.

Bolted on external iron ballast keel.

Hull finished externally with white isophthalic gelcoat.

Underwater hull finished in navy antifouling

Deck & Superstructure Construction:

Single-piece GRP moulding with integrated cockpit and coachroof superstructure

Sandwich construction moulding with balsa core and plywood stiffening pads in way of deck fittings.

Deck finished in isophthalic gelcoat with moulded non-slip textured panels on coachroof top

Laid teak decking panels to finish side decks, foredeck and cockpit

Keel & Rudder:

Cast iron ballast keel

Stainless steel keel bolts

Semi-balanced skeg hung rudder

MACHINERY

Engine & gearbox:

Nanni N4.50 marine diesel engine (2011)

Kubota base engine

47.5hp @ 2,800rpm

4 cylinder, naturally aspirated, indirectly cooled.

Mechanical reversing marine gear box

Single lever morse control

Maintenance & Performance:

Engine serviced and winterised autumn 2024

Recorded running hours – 1790hrs

Cruising speed 6.5kts

Propulsion & Steering:

Stainless steel prop shaft

Bronze fixed 3-blade propellor

Whitlock steering pedestal

Stainless steel steering wheel with leather cover

Bow Thruster:

Lewmar tunnel mounted bow thruster (2011)

Lewmar proportional control on cockpit coaming side

Autopilot:

Raymarine autopilot system with P70s control

Linear drive unit direct to quadrant

ELECTRICAL SYSTEMS

Voltage systems:

12VDC onboard power system

230VAC shore power system

Shore Power System:

Extension lead to connect to shore supply

Single 16 amp connection point

Hardwired RCD-protected system. Separate 50amp USA inlet.

3-pin UK sockets, battery charger, immersion heater

Battery Banks:

Engine Battery – 1x 12VDC, 120Ah lead acid

Domestic Battery - 2x 12VDC, 120Ah lead acid

Bow Thruster Battery – 1x 12VDC, lead acid

Battery Monitor:

Voltmeter on switch panel

Charging:

230VAC – 12VDC battery charger

Alternators:

Single engine mounted alternator

Other Electrical:

12VDC auxiliary sockets in saloon and at chart table

PLUMBING SYSTEMS

Fresh Water:

Pressurised hot and cold water systems

Mixer tap in galley

Manually pumped tap in galley

Mixer tap in forward heads, extending for use as shower head

Mixer tap in aft heads

Dedicated shower fitting in aft heads

Hot water provided from calorifier, heated by engine cooling water or 230VAC immersion heater

Salt Water:

Manually pump salt water tap at galley sink

Deck Wash:

Salt water deck wash system

Housed in anchor locker

Bilge Pumps:

Manual Bilge Pump

Electric Bilge Pump

TANKAGE

Fuel:

Single diesel tank

Approximate capacity 220ltrs

Fresh Water:

Twin freshwater tanks

Approximate capacity 455ltrs

NAVIGATION & COMMUNICATION EQUIPMENT

On Deck:

Plotter – Raymarine E7 Hybrid touch

Depth – Raymarine i60

Speed/Log – Raymarine i60

Wind – Raymarine i60

Close Hauled Wind – Raymarine i60

Communications Equipment:

DSC VHF – Icom M423

AIS – (2018)

Navtex – NASA Easy Navtex

DOMESTIC EQUIPMENT

Galley:

Galley Stove – LP Neptune 4500 gas cooker. Two-burner, oven and grill (2022)

Fridge – Built-in top-loading fridge with icebox. 12VDC compressor

Top loading, lined pantry locker

Double stainless steel sinks

Mixer tap

Manually pump fresh and salt water taps

Heads:

Forward toilet - Jabsco manual marine toilet

Aft Toilet – Jabsco manual marine toilet

2x wash hand basins

Mixer tap extending for use as shower head in forward heads

Mixer tap in aft heads

Dedicated shower fitting in aft heads

Heating & Ventilation:

Eberspacher diesel-fired blown air heating system

Thermostatic cabin controller

Outlets in forward cabin, port cabin, saloon and aft cabin

Lighting:

Overhead lighting throughout interior

Reading lights in cabins

Chart table working light

Engine compartment light

Entertainment:

Sony Radio/CD headunit with auxiliary input

Speakers in saloon

ACCOMMODATION

Summary of Accommodation:

Double cabin forward

Twin port side bunk cabin

Saloon

Galley

Nav Station

Master cabin aft

Accommodation Finish:

Teak joinery work, teak veneered plywood with solid teak trims

Joinery work finished in satin effect varnish

Teak and holly effect laminate finish to soleboards

Upholstery replaced throughout interior in 2018

Sprung mattresses for aft cabin bunk

Headlining replaced throughout the interior in 2021

GRP moulded heads compartments

Stainless steel worktops in galley

Description of Accommodation from Forward:

Forward Cabin:

Twin V-berths forward with infill section to create double berth

Lockers running the length of the bunks outboard, overhead

Standing room aft of bunk

Dresser unit outboard of standing room to starboard with storage lockers above and below the countertop

Port Bunk Cabin:

Located to port side of walk-thru from saloon to forward cabin

Two single bunks outboard, one above the other

Storage locker space beneath the lower bunk

Standing room inboard of bunks

Hanging locker forward

Countertop unit aft with storage locker beneath

Forward Heads:

To starboard side of the walk-thru from saloon to forward cabin

Manual marine toilet located inboard, forward

Countertop outboard running length of compartment with inset wash hand basin aft

Vanity lockers outboard above the countertop

Saloon:

Centrally located double drop-leaf saloon table, bottle storage in central section forward with drawers beneath aft end of central section

L-shaped settee to port

Bench settee to starboard

Selection of lockers outboard of settee backrests overhead

Galley:

U-shaped galley to port side of companionway

Double stainless steel sinks forward

Top loading pantry locker beneath inboard section of forward worktop

Gimbal mounted gas cooker outboard

Top-loading fridge beneath aft section of worktop with double opening doors

Two-tier storage lockers outboard of worktops

Nav Station:

Located to starboard side of companionway

Forward facing chart table with dedicated navigators seat, bolstered cushion on seat to aid use when heeled over

Chart storage with in table top

Selection of storage drawers beneath chart table forward

Bookshelf locker forward of table outboard

Ships switch panel, DSC VHF and Navtex displays outboard of chart table and seat

Stroage locker above seat back aft

Walk-Thru To Aft Cabin:

Running aft from nav station on starboard side

Hanging locker outboard of walk-thru

Access to engine space inboard

Master Aft Cabin:

Double bunk outboard to port aft

Bench settee wrapping around cabin to starboard side

Standing room forward

Shelf running the length of the bunk outboard

Countertop running around settee back with lockers above

Dresser unit with mirror on bulkhead forward, counter top below mirror with selection of lockers beneath

Hanging locker outboat forward to starboard side

Access to en-suite heads forward to port

Aft Heads:

En-suite heads for aft cabin

Manual marine toilet located inboard forward

Countertop running the length of the compartment outboard with inset wash hand basin aft.

Mixer tap

Dedicated shower fitting

Vanity lockers outboard of countertop

DECK EQUIPMENT

Rig:

Deck stepped, double spreader, masthead sloop rig

Silver anodised alloy mast and spars

Stainless steel standing rigging

Standing rigging fully replaced in 2023

Furlex 300S roller reefing system on forestay

Slab-reefing mainsail

Rod kicker

Spinnaker pole

Boom brake

Lazyjacks

Lines run aft from mast to cockpit on port and starboard sides of coachroof

Spinlock rope clutches for lines run aft

Winches:

Primary Winches – 2x Lewmar 48, three-speed

Secondary Winches – 2x Lewmar 40, two-speed

Cockpit Halyard / Reefing Winches – 1x Lewmar 16, two-speed, self-tailing 1x Lewmar 40, two-speed

Mainsheet Winch – 1x Lewmar 16, two-speed, self-tailing

Roller Reefing Winch – Lewmar 16, two-speed

Mast Mounted Reefing Winch – Lewmar 16, two-speed

Mast Mounted Halyard Winch – Lewmar 24, two-speed

Sails:

Mainsail – Pentax Dacron, fully battened, slab reefing, 3 full reefs. Goacher Sails (2010)

Genoa – Pentax Dacron, roller reefing. Goacher Sails (2016)

Spinnaker

Canvas Work:

Mainsail Cover – Stackpack type cover with mast boot and lazy jacks

Sprayhood – With additional, large diameter stainless steel grab rail immediately aft of cover

Spray Dodgers – With boat name

Anchoring & Mooring:

Bower Anchor – Rocna 25kg anchor with 50m chain rode

Kedge Anchor – 35lb CQR plough anchor with chain and warp rode

Anchor Windlass – Simpson Lawrence Seawolf electric windlass with chain gypsy and warping drum

Mooring Warps – Selection

Fenders - Selection

Tender:

Inflatable Dinghy – Aquamarine Soft-Line 270 (2021)

Davits – Simpson and Lawrence manual davits, transom mounted

General:

Stainlesss steel double bow roller

Stainless steel pulpit rail

Stainless steel toe rail-mounted stanchions supporting double-tier guardwires

Guardwire gates to port and starboard sides

Below deck anchor locker, anchor windlass mounted within locker space

Stainless steel ‘granny bars’ to port and starboard sides of mast step

Safety lines running from granny bars aft to cockpit grabrail

Teak grabrails running along outboard edges of coachroof from mast step aft to sprayhood

Large diameter stainless steel grab bar running around sprayhood aft to ease access from cockpit to side decks

Primary, secondary and mainsheet winches mounted on coamings outboard of cockpit

U-shaped cockpit seating wrapping around cockpit with a pedestal mounted centrally aft

Halyard/Reefining winches mounted outboard of the companionway to port and starboard with rope clutches forward

Folding cockpit table mounted on forward side of pedestal

Cockpit locker beneath port side cockpit seating

Mainsheet mounted across coachroof aft of cockpit

Stainless steel pushpit rail with gate centrally to access transom

Transom-mounted boarding ladder

SAFETY EQUIPMENT:

General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

Navigation Lights:

Masthead Tri-colour

Masthead Anchor light

Steaming light

Low-level navigation lights

Life saving:

Oscar MOB rescue sling

Horseshoe lifebuoy x2

Jackstays

DISCLAIMER

In this case we are acting as brokers only.

The Owner is not selling in the course of a business. whilst every care has been taken in their preparation , the correctness of these particulars is not guaranteed. The Purchaser is strongly advised to check the particulars and where appropriate at their expense to employ a qualified Marine Surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability for such engine on our part.

This vessel is offered subject to prior sale, price change, or withdrawal without notice
