CONSORTIUM OF BOATYARDS Volvo Ocean 65 Zu verkaufen (2013) in Torrevieja, Valencian Community, Spanien

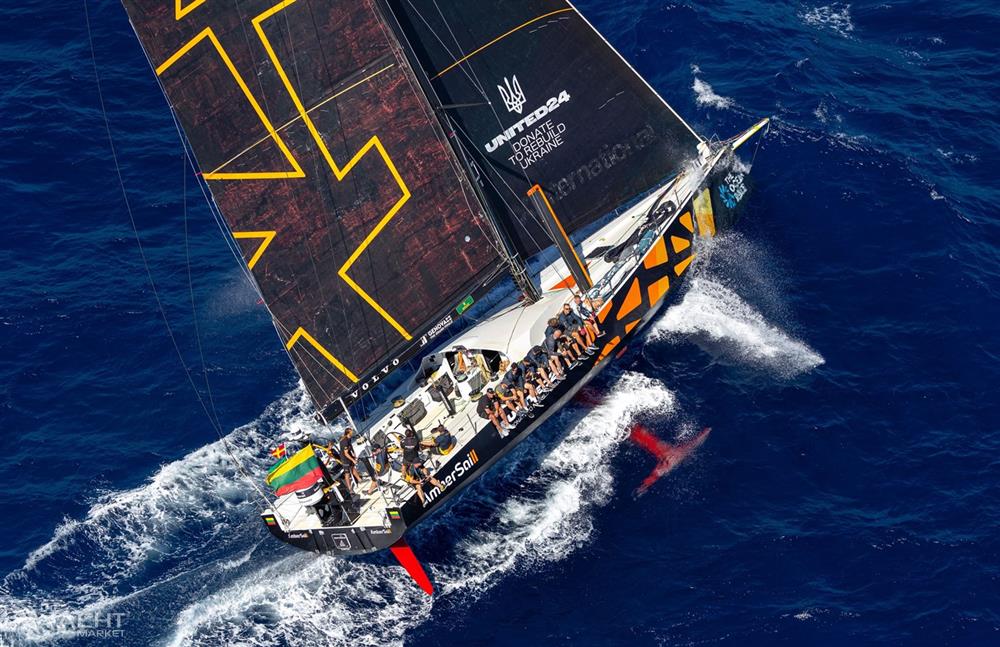

Volvo Ocean 65 AMBERSAIL is the only Volvo 65 to have completed only one lap of the planet. She is in great condition and has been used for coastal racing since the fleet refit. She comes with a spare rig and is ripe for optimization.

A Consortium of Boatyards

• Green Marine Ltd. – Lead manufacturer. Hull – deck, painting and hull fit out.
• Decision S.A. – Manufacturer of internal structure and bulkheads.
• Multiplast – Manufacturer of deck.
• Persico S.P.A. – Manufacturer of hull and assembling of internal structure from Persico.

Construction

Hull, Deck & Superstructure Construction:

• The hull, internal structure and deck are constructed of carbon sandwich.
• In the forward slamming area Corecell is used, and the rest of the yacht is kevlar honeycomb.
• Sprint resin infusion holds the structure together with maximum strength and minimum weight.

Keel & Rudder:

• Canting keel to +/- 40 degrees with 5 degrees of incline axis.
• Twin forward daggerboards, inboard triangulation.
• Twin fixed rudders – composite stocks.
• Twin 800 litre ballast tanks under cockpit sides at transom.
• Single centerline 1,100 litre ballast tank forward of mast.
• Keel and bulb manufactured by Iron Brothers.
• Canting mechanism and bearings from Cariboni.

Machinery

Engine & Gearboxes:

• 1 x Volvo Penta D2-75 with S-drive.
• Replaced throttle control.
• Upgraded ventilation in engine space.

Maintenance & Performance:

• Full Volvo Penta Service on both main engine and Saildrive.

Electrical Systems

Voltage Systems:

• As a part of the weight-saving design concept the Volvo 65 employ 24-volt DC electrical systems.
• This allows weight saving my minimizing wiring size compared to a more common 12-volt DC system.

Battery Banks:

• 2 x Mastervolt Lithium batteries saving around 70% of the weight of traditional batteries with the additional benefit of being very robust.
• Mastervolt lithium-ion batteries saves as much as 70% in weight over more traditional battery technology.

Alternators:

• Two heavy-duty Mastervolt alternators with 150-amp output.
• The alternators are driven by the main engine, as comparatively low-current-draw equipment, high alternator output, and a very high recharge acceptance rate for the lithium-ion batteries, engine run time is minimized.
• It takes around one hour a day to bring all systems up to full charge, minimizing diesel fuel usage, meaning less fuel – therefore less weight needs to be carried onboard.

Generator:

• Main engine acts as generator. Full charge in around 1 hour per day.

Plumbing Systems

Watermaker:

• SPECTRA watermaker – Cape Horn Xtreme model. Can be run on one pump for efficiency or two for speed. 15G / hour.

Bilge Pumps:

• Plastimo on deck bilge pump.
• Fitted bilge pump in hull.
• Emergency bilge pump.

Deck Equipment

Rig:

• 99.4’ / 30.30m rig height.
• 7’ / 2.14m bowsprit length.
• The deck-stepped mast has a tube length of 28.4m (98’) and is built from High Modulus Carbon Fibre.
• It was designed in-house by Southern Spars using the DesMan and RigCalc software packages, integrated with the North Sails design software.
• Structurally, there are 202 pieces of Carbon Fibre pre-preg in each mast tube, with an additional 52 patches of structural reinforcement.
• The Volvo Ocean 65 sports a 7.68m racing box boom again built from high modulus carbon and weighing 68kgs.
• Its deep section provides maximum stiffness to weight efficiency and provides extra downwind sail area.
• With internal locks at the outboard end of the boom, reefing is made efficient for the crew to manage in strong winds.
• The rigging consists of nine separate stays and is constructed from intermediate modulus carbon fibre, with main stays that have a 26-ton minimum break load.
• The ECsix carbon rigging is four times lighter than comparative nitronic steel rigging.
• It has a multistrand construction based on a bundle of small rods for safety, durability, longevity and flexibility in the toughest conditions.
• Twin topmast backstays and checkstays with deflectors.
• Spare Mast.

Winches:

• Primaries HARKEN B1111.3 ST.
• Mainsheet HARKEN B990.3 ST.
• Driven Pit HARKEN B990.3.
• Runners HARKEN B990.3 ST.
• Pit HARKEN B65.2 STR.
• Pedestals HARKEN MX 2 Spd Carbon.

Sails:

• 3 x Mainsails.
• 1 x J0.
• 2 x J1.
• 2 x J2
• 2 x GS.
• 1 x MH0.
• 1 x A3.
• 1 x FR0.
• 1 x A4.
• 163 m2 mainsail area.
• 133 m2 working jib area.
• 468 m2 (mainsail and masthead code 0).
• 296 m2 (mainsail and working jib).
• 578 m2 (mainsail and A3).

General:

• One storage container.
• One flat rack for transportation with splashes.

Anchoring & Mooring Equipment:

• Anchor.
• Fenders.
• Warps.

Safety Equipment
